CFL master PL 18W 840 2P xtra compact fluorescent lamp G24

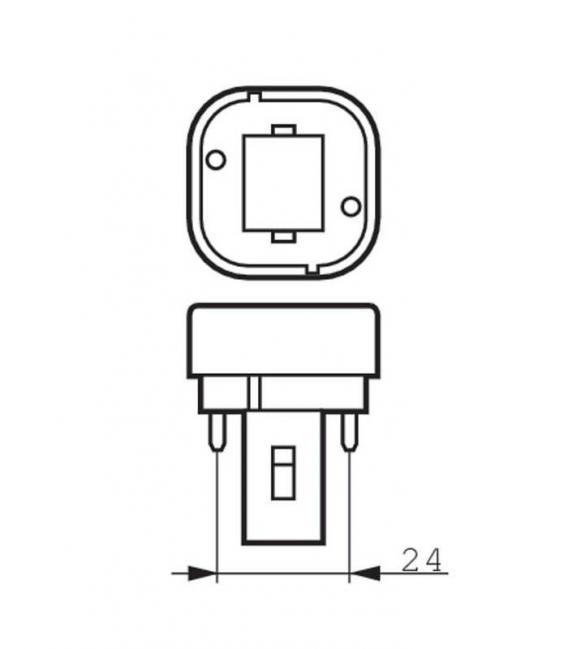

Cap-Base G24d-2
Life to 10% failures EM 12000 h
Life to 50% failures EM 16000 h
LSF HF Preheat 2000 h Rated,3h 99%
LSF 4000 hRated 98%
LSF 6000 hRated 97%
Color Code 840 [ CCT of 4000 K]
Luminous Flux 1200 lm
Luminous Flux (Rated) 1200 lm
Color Designation Cool White (CW)
Chromaticity Coordinate X 380
Chromaticity Coordinate Y 380
Correlated Color Temperature 4000 K
Luminous Efficacy (rated) 67 lm/W
Color Rendering Index 82
LLMF 2000 h Rated 92%
LLMF 4000 hRated 87%
Power (Rated) 17.9 W
Lamp Current 0.220 A
Design Temperature 28 °C
Dimmable No
Energy Efficiency Label (EEL) B
Mercury (Hg) Content 3 mg
Energy consumption kWh/1000 h 22 kWh

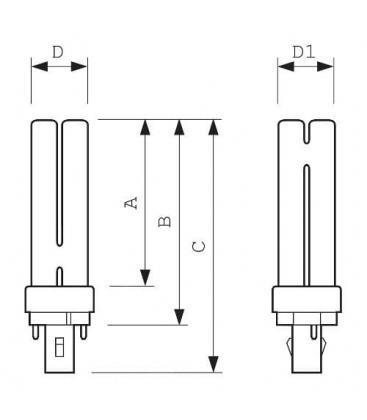

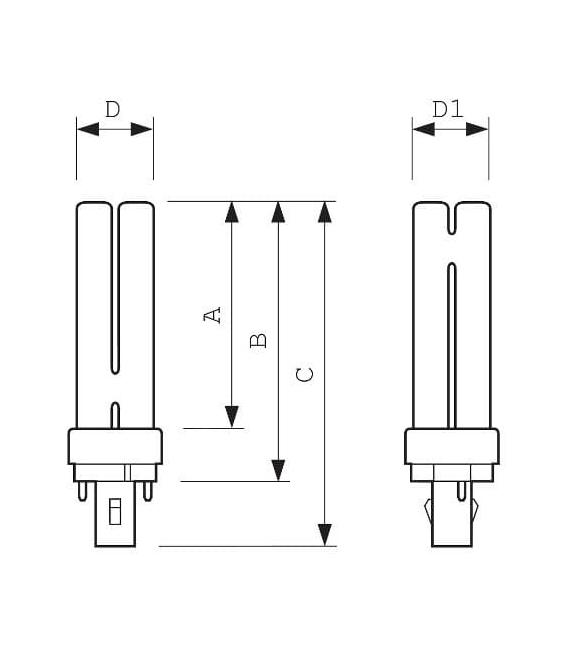

Base Face to Base Face A 109.7 (max) mm
Insertion Length B 128 (max) mm
Overall Length C 150.4 (max) mm
Diameter D 27.1 (max) mm
Diameter D1 27.1 (max) mm
This is an efficient compact fluorescent lamp, typically used in general downlights for retail, hospitality and office applications. MASTER PL-C Xtra lamps furthermore provide significantly lower operating costs thanks to their lifetime, which is more than double that of a standard MASTER PL-C lamp, and their very low early failure rate. The original Philips-invented bridge technology guarantees optimum performance in the application, enabling more light and higher efficacy than the bended technology. The 2-pin version is designed for operation on electromagnetic gear and is provided with a plug-in/pull-out lamp base.

Benefits
• Less hassle and lower maintenance costs and facilitating the change from spot to group replacement

Benefits
• Optimal light performance for long operation per switch-on
• Multiple light color choice
• Good color rendering (CRI > 80)

Features
• 2-pin base with a housing incorporating the special instant starter
• Fluorescent tri-phosphor technology
• Extra long lifetime and fewer early failures
• Low light depreciation over lamp life

Applications
• Designed for general or supplementary lighting in professional environments
• Recessed or surface-mounted downlighters, wall units, table lamps and pendant lamps
• Suitable for use in applications where maintenance costs are high (high ceilings, difficult to reach): department stores, supermarkets, warehouses, production halls and public areas

General safety informations
