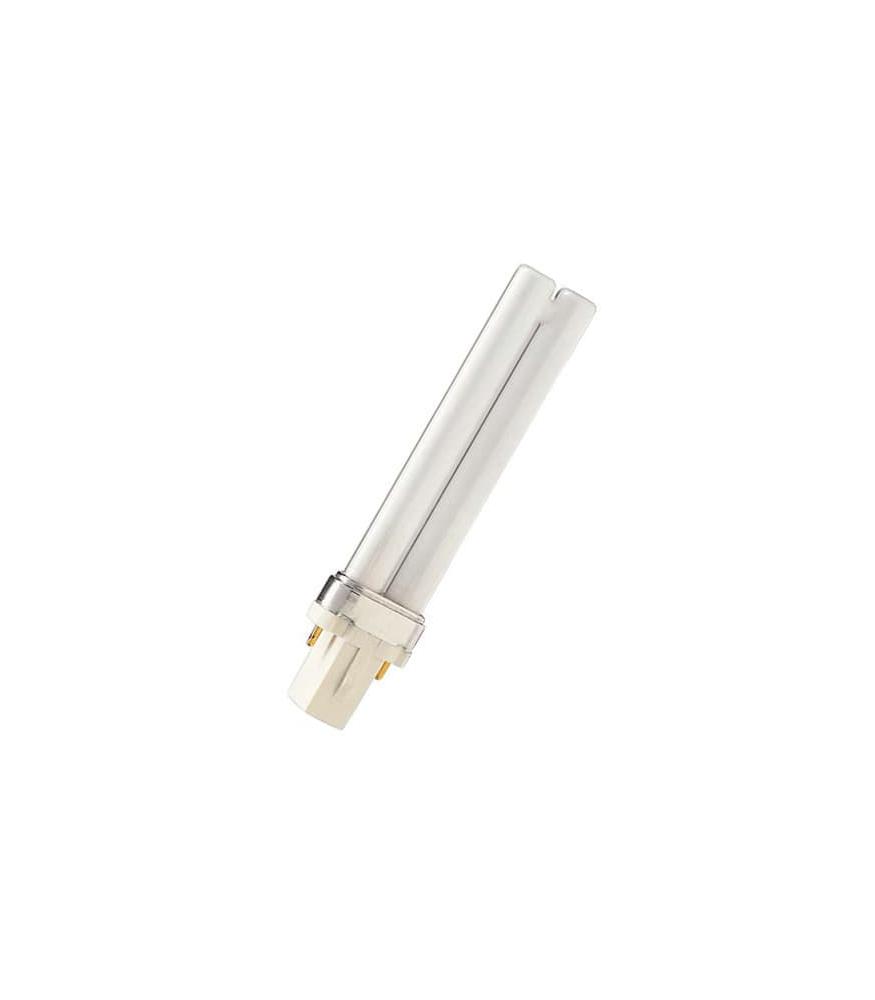

CFL master PL 7W 830 2P compact fluorescent lamp G23 2G7

Philips CFL master PL 7W 830 2P compact fluorescent lamp G23 2G7 S. Illuminate your space with the Master PL-S 7W 830 2P compact energy-saving lamp. Efficient and bright, perfect for G23 2G7 fixtures.

Cap-Base G23
Cap-Base Information 2P
Life to 10% failures EM 6500 h
Life to 50% failures EM 10000 h
Color Code 830 [CCT of 3000 K]
Color Rendering Index 82 Ra8
Color Designation Warm White
Color Temperature 3000 K
Luminous Flux EM 25 °C, Rated 405 lm
Luminous Flux EM 25 °C, Nominal 400 lm
Luminous Efficacy Rated EM 25 °C 57 lm/W
Design Temperature 28 C
Chromaticity Coordinate X 435 -
Chromaticity Coordinate Y 401 -
Lamp Wattage 7 W
Lamp Voltage 47 V
Lamp Current 0.175 A
Dimmable No
Energy Efficiency Label (EEL) B
Mercury (Hg) Content 1.4 mg
Energy consumption kWh/1000 h 9 kWh

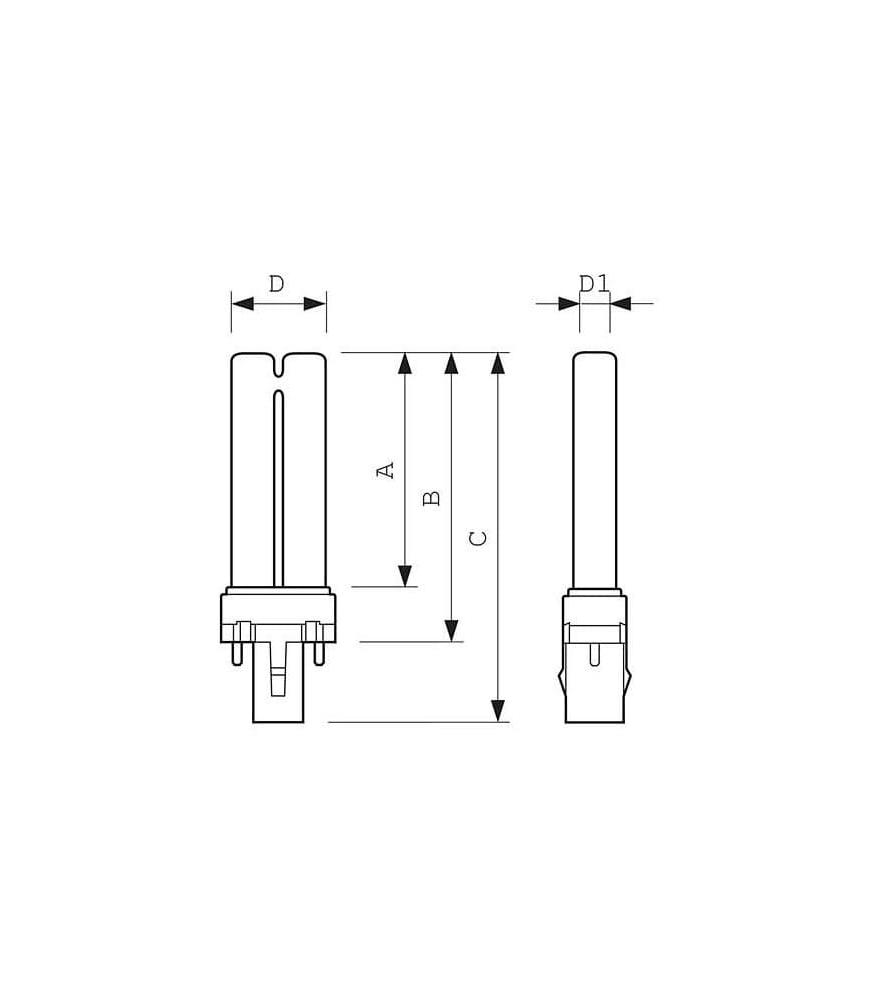

Base Face to Base Face A 97 (max) mm
Insertion Length B 113 (max) mm
Overall Length C 135 (max) mm
Diameter D 28 (max) mm
Diameter D1 13 (max) mm

Features
• 2-pin base with a housing incorporating the special instant starter and capacitor
• Fluorescent tri-phosphor technology
• Low light depreciation over lamp life

Applications
• Designed for use in hotels, restaurants, theatres and homes
• Suitable for use in signs, corridors, security and orientation lighting
