260963 | Manufacturer: Philips | EAN: 8711500260963 | MPN: 927936284011

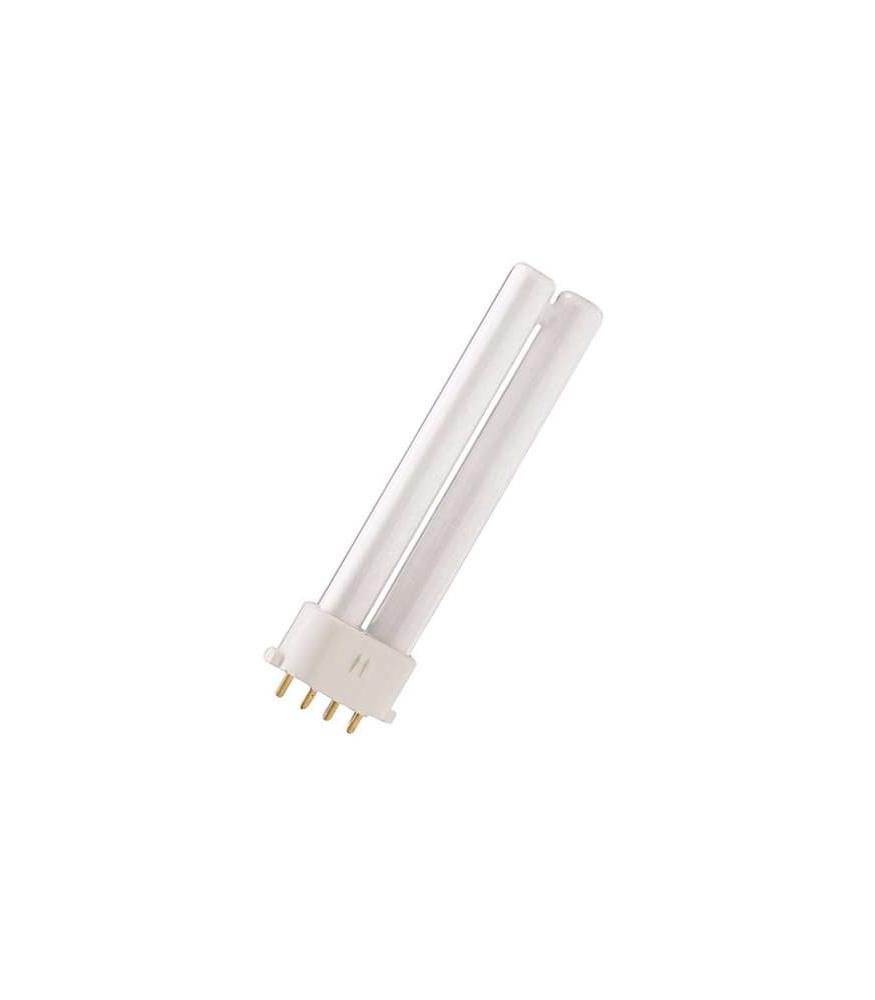

CFL master PL 9W 840 4P compact fluorescent lamp G23 2G7
Product is out of production!
The Master PL-S 9W 840 4P is a compact energy-saving lamp that offers efficient lighting for decorative and orientation purposes. With Philips' original bridge technology, this fluorescent lamp provides optimal performance, delivering more light and higher efficacy compared to bended technology. Illuminate your space with this low-wattage lamp that guarantees long-lasting brightness and energy efficiency. Perfect for hotels, restaurants, theaters, homes, signs, corridors, security areas, and orientation lighting needs.
More info
Philips CFL master PL 9W 840 4P compact fluorescent lamp G23 2G7 S. Illuminate your space with the Compact Fluorescent Lamp Master PL-S 9W 840 4P. Discover efficient lighting solutions in G23 2G7 category.
Cap-Base 2G7
Cap-Base Information 4P
Life to 10% fail Preheat EL,3h 8000 h
Life to 10% fail Brez predgretja EL,3h 4500 h
Life to 50% fail Preheat EL,3h 13000 h
Life to 50% fail Brez predgretja EL,3h 7000 h
Color Code 840 [CCT of 4000 K]
Color Rendering Index 82 Ra8
Color Designation Cool White
Color Temperature 4000 K
Luminous Flux EM 25 °C, Rated 583 lm
Luminous Flux EM 25 °C, Nominal 600 lm
Luminous Efficacy Rated EM 25 °C 73 lm/W
Design Temperature 28 C
Chromaticity Coordinate X 381 -
Chromaticity Coordinate Y 379 -
Lamp Wattage 9 W
Lamp Voltage 60 V
Lamp Current 0.170 A
Dimmable Yes
Energy Efficiency Label (EEL) A
Mercury (Hg) Content 1.4 mg
Energy consumption kWh/1000 h 9 kWh

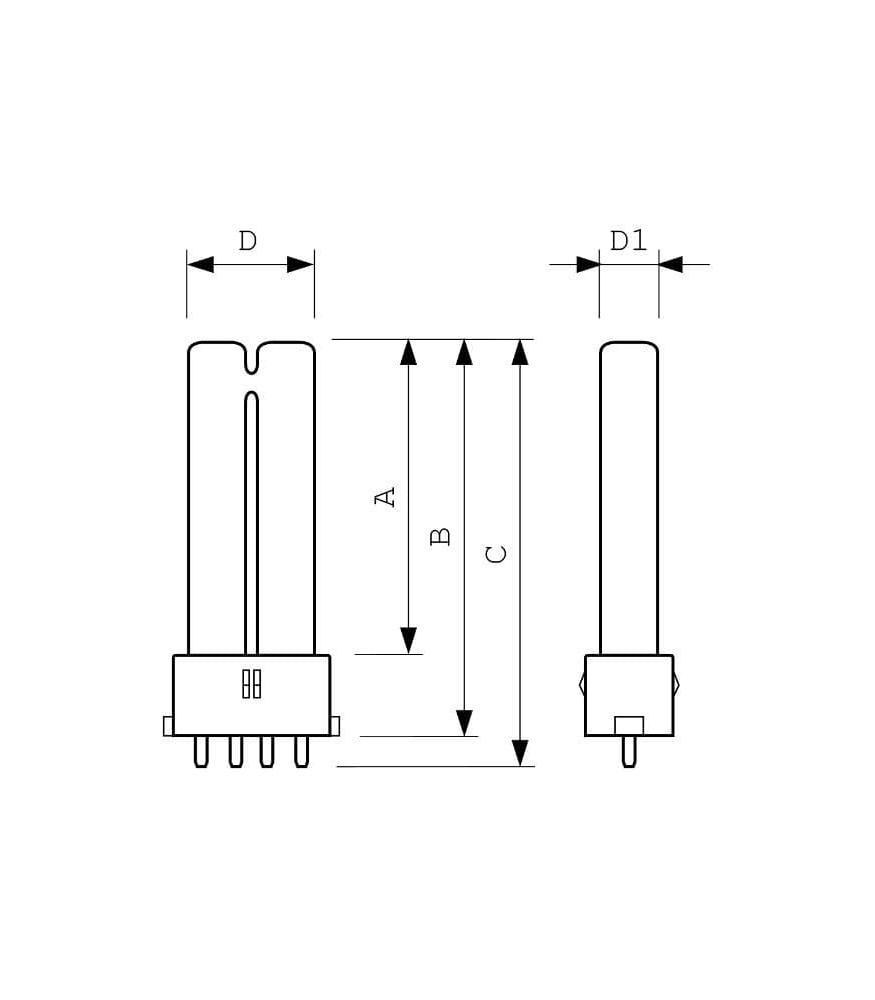

Base Face to Base Face A 128 (max) mm
Insertion Length B 145 (max) mm
Overall Length C 151.1 (max) mm
Diameter D 28 (max) mm
Diameter D1 13 (max) mm
Features
• 4-pin base
• Fluorescent tri-phosphor technology
• Low light depreciation over lamp life
Applications
• Designed for use in hotels, restaurants, theatres and homes
• Suitable for use in signs, corridors, security and orientation lighting
| Explanation It needs ballast | yes |
| Explanation Dimmable | yes, with DIMM ECG |
| Explanation Energy efficiency class | A |
| Explanation Lamp holder, lamp socket | 2G7 |
| Explanation Wattage - (W) | 9 |
| Explanation Luminous flux - (lm) | 600 |
| Explanation Luminous efficacy - (lm / W) | 67 |
| Explanation Color temperature - (K) | 4000 |
| Explanation Light color code | 840 |
| Explanation Color rendering - (CRI) | 82 |
| Explanation Energy consumption - (kWh / 1000h) | 9 |
| Explanation Lifetime - (h) | 13000 |
| Explanation Factory packed - (pieces) | 10 |
