260932 | Manufacturer: Philips | EAN: 8711500260932 | MPN: 927936283011
CFL master PL 9W 830 4P compact fluorescent lamp G23 2G7
Product is out of production!
The Master PL-S 9W 830 4P is an energy-saving lamp that offers efficient and low-wattage lighting. With its original Philips-invented bridge technology, it provides optimal performance, delivering more light and higher efficacy compared to bended technology. Perfect for decorative and orientation purposes, this compact fluorescent lamp is a reliable choice for hotels, restaurants, theatres, homes, signs, corridors, security lighting, and orientation lighting.
More info
Philips CFL master PL 9W 830 4P compact fluorescent lamp G23 2G7 S. Illuminate your space with the energy-saving brilliance of our Master PL-S 9W 830 4P compact lamp. Perfect for G23 2G7 fixtures, this efficient lighting solution brightens any room while saving on energy costs.
Cap-Base 2G7
Cap-Base Information 4P
Life to 10% fail Preheat EL,3h 8000 h
Life to 10% fail Brez predgretja EL,3h 4500 h
Life to 50% fail Preheat EL,3h 13000 h
Life to 50% fail Brez predgretja EL,3h 7000 h
Color Code 830 [CCT of 3000 K]
Color Rendering Index 82 Ra8
Color Designation Warm White
Color Temperature 3000 K
Luminous Flux EM 25 °C, Rated 583 lm
Luminous Flux EM 25 °C, Nominal 600 lm
Luminous Efficacy Rated EM 25 °C 73 lm/W
Design Temperature 28 C
Chromaticity Coordinate X 435 -
Chromaticity Coordinate Y 401 -
Lamp Wattage 9 W
Lamp Voltage 60 V
Lamp Current 0.170 A
Dimmable Yes
Energy Efficiency Label (EEL) A
Mercury (Hg) Content 1.4 mg
Energy consumption kWh/1000 h 9 kWh

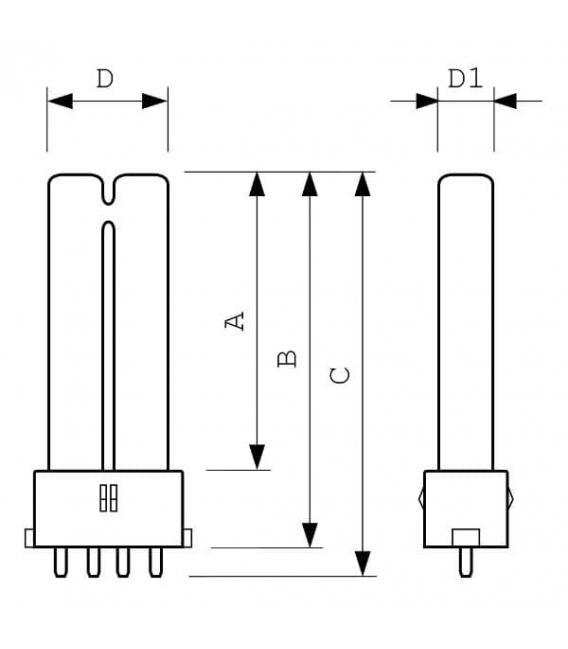

Base Face to Base Face A 128 (max) mm
Insertion Length B 145 (max) mm
Overall Length C 151.1 (max) mm
Diameter D 28 (max) mm
Diameter D1 13 (max) mm
Features
• 4-pin base
• Fluorescent tri-phosphor technology
• Low light depreciation over lamp life
Applications
• Designed for use in hotels, restaurants, theatres and homes
• Suitable for use in signs, corridors, security and orientation lighting
| Explanation It needs ballast | yes |
| Explanation Dimmable | yes, with DIMM ECG |
| Explanation Energy efficiency class | A |
| Explanation Lamp holder, lamp socket | 2G7 |
| Explanation Wattage - (W) | 9 |
| Explanation Luminous flux - (lm) | 600 |
| Explanation Luminous efficacy - (lm / W) | 67 |
| Explanation Color temperature - (K) | 3000 |
| Explanation Light color code | 830 |
| Explanation Color rendering - (CRI) | 82 |
| Explanation Energy consumption - (kWh / 1000h) | 9 |
| Explanation Lifetime - (h) | 13000 |
| Explanation Factory packed - (pieces) | 10 |
