LEDtube 25W 865 tubular corepro series 1500mm length lamp G13 T8

Philips LEDtube 25W 865 tubular corepro series 1500mm length lamp G13 T8 C. Illuminate your space with the LEDtube 25W 865 C Tubular LED lamp from CorePro Series. Enjoy bright, energy-efficient lighting in a sleek design.

Main Application Industrial
Cap-Base G13
Rated Lifetime (hours) 30000 h
Nominal Lifetime hours 30000 h
Color Code 865
Beam Angle 160°
Correlated Color Temperature 6500 K
Color rendering index 80
Rated Luminous Flux 2000 lm
LLMF - end nominal lifetime 70%
Colour consistency 6 steps
Rated Beam Angle 160°
Wattage 25 W
Voltage 220 - 240 V
Line Frequency 50 - 60 Hz
Power Factor 0.9 (min) -
Dimmable No
Rated Wattage 25 W
Starting Time 0.5 (max) s
Warm-up Time to 60% Light Output instant full light
Energy saving product Yes
Suitable for accent lighting No
T-case maximum 55 (max) °C
Operating temperature –30 (min), 45 (max) °C
T-Storage -40 (min), 65 (max) °C
Energy Efficiency Label (EEL)A
Switching cycle 50000

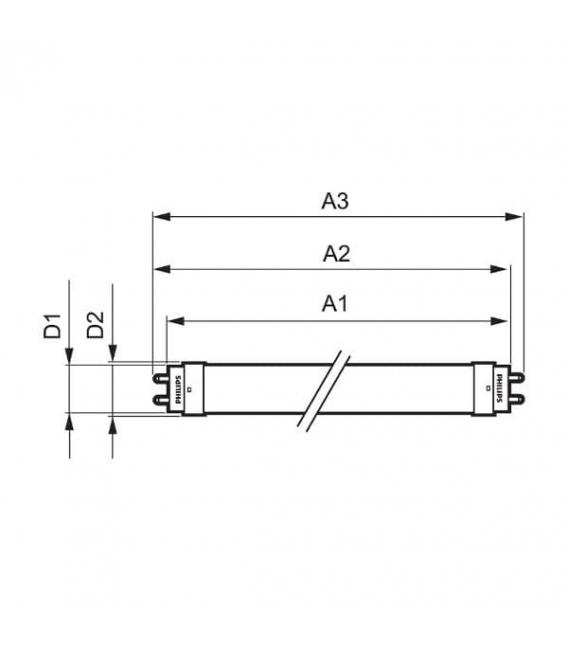

Length A1 1500 mm
Fixing Hole Distance A2 Length 1507 mm
Length A3 1514 mm
Mounting hole diameter 25.68 mm
Circular outline dimension 28 mm

Features
• Only 50% energy consumption compared to fluorescent tubes
• Lasts two times longer than fluorescent tubes
• Retrofit replacement of existing T8 lamps on electromagnetic (EM) ballast installations

Applications
• Parking lots and covered car parks
• Warehouses and coldrooms
• Signage

Download CorePro-QIG-v6-web.pdf
