711095 | Manufacturer: Philips | EAN: 8718696711095 | MPN: 71109500

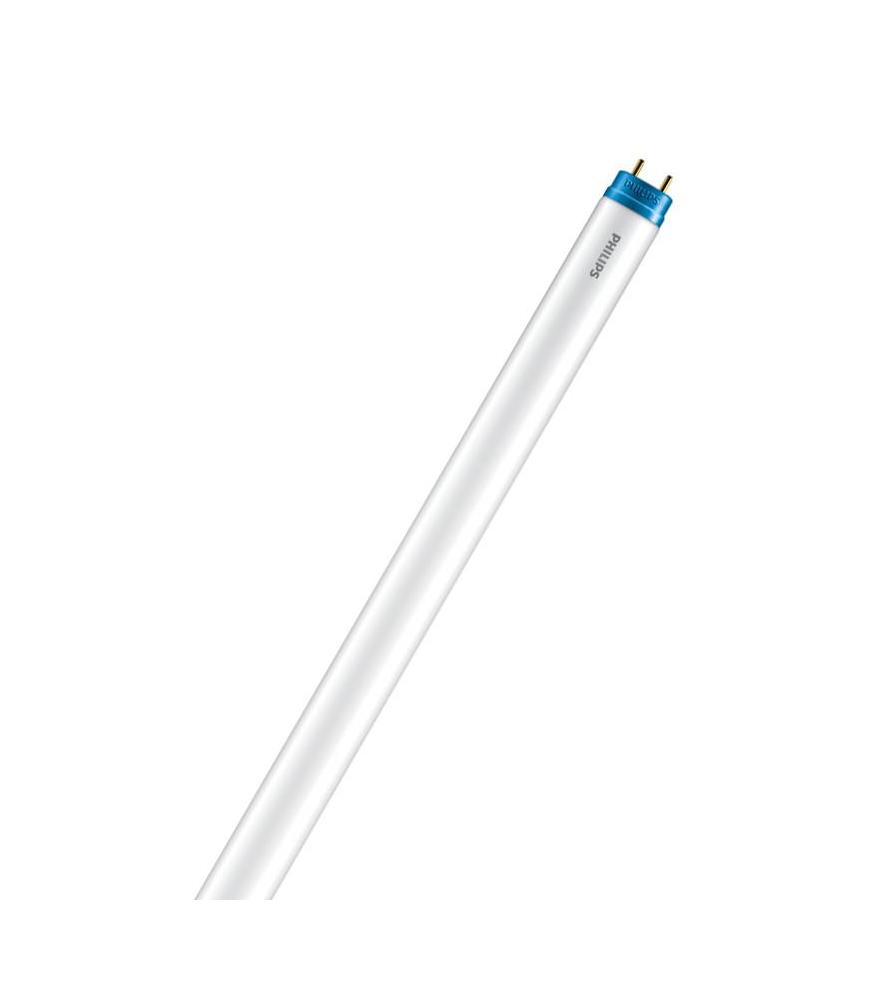

LEDtube EM 14.5W 865 Tubular 1200mm Length
The CorePro Ledtube is an affordable LED solution suitable for replacing T8 fluorescent lamps. It provides a natural lighting effect for general lighting applications, along with instant energy savings. With only 50% energy consumption compared to fluorescent tubes and lasting two times longer, it offers the cheapest and easiest upgrade to LED technology. Perfect for parking lots, warehouses, and signage.
More info

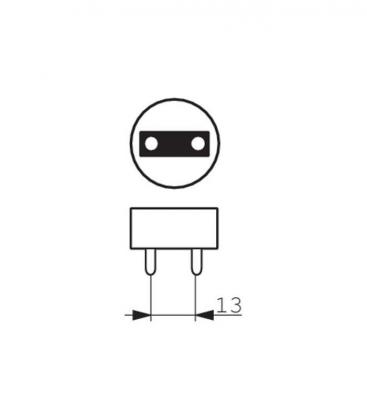

Cap-Base G13 [ Medium Bi-Pin Fluorescent]
Main Application Industrial
Nominal Lifetime 30000 h
Switching Cycle 200000 ×
B50L70 30000 h
Color Code 865 [ CCT of 6500 K]
Luminous Flux 1600 lm
Luminous Flux (Rated) 1600 lm
Correlated Color Temperature 6500 K
Color Consistency <6
Color Rendering Index 80
LLMF At End Of Nominal Lifetime 70%
Input Frequency 50 - 60 Hz
Power (Rated) 14.5 W
Lamp Current 70 mA
Starting Time 0.5s
Warm Up Time to 60% Light 0.5s
Power Factor 0.9
Voltage 220 - 240 V
T-Ambient (Max) 45 °C
T-Ambient (Min) –20 °C
T-Storage (Max) 65 °C
T-Storage (Min) –40 °C
T-Case Maximum 40 °C
Dimmable No
Product Length 1200 mm
Energy Saving Product Yes
Energy Efficiency Label (EEL) A+
Approval Marks CE marking, RoHS compliance. KEMA Keur certificate
Energy Consumption kWh/1000 h 15 kWh

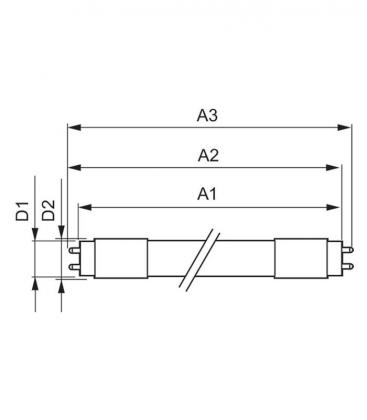

Length A1 1198 mm
Fixing Hole Distance A2 Length 1205 mm
Length A3 1212 mm
Mounting hole diameter D1 25.7 mm
Circular outline dimension D2 28 mm
Benefits
Benefits
• Minimizes overall lighting costs
• Offers cheapest and easiest upgrade to Led lighting technology
Features
• Only 50% energy consumption compared to fluorescent tubes
• Lasts two times longer than fluorescent tubes
• Retrofit replacement of existing T8 lamps on electromagnetic (EM) ballast installations
Applications
• Parking lots and covered car parks
• Warehouses and coldrooms
• Signage
