LEDtube 20W 865 tubular corepro series 1500mm length lamp G13 T8

Philips LEDtube 20W 865 tubular corepro series 1500mm length lamp G13 T8 C. Illuminate your space with the LEDtube 20W 865 C Tubular LED lamp from CorePro Series. Enjoy bright, energy-efficient lighting at 1500mm length.

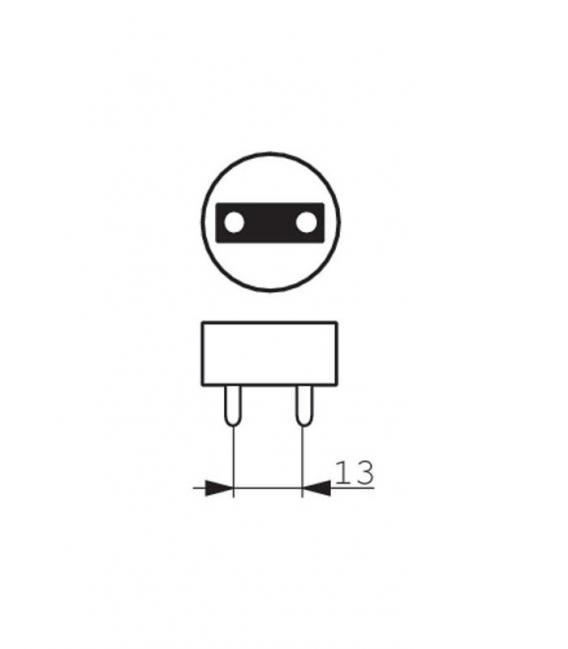

Cap-Base G13 [ G13 Medium Bi-Pin Fluorescent]
Main Application Industrial
Nominal Lifetime 30000 h
Switching Cycle 200000 ×
B50L70 30000
Color Code 865 [ CCT of 6500 K ]

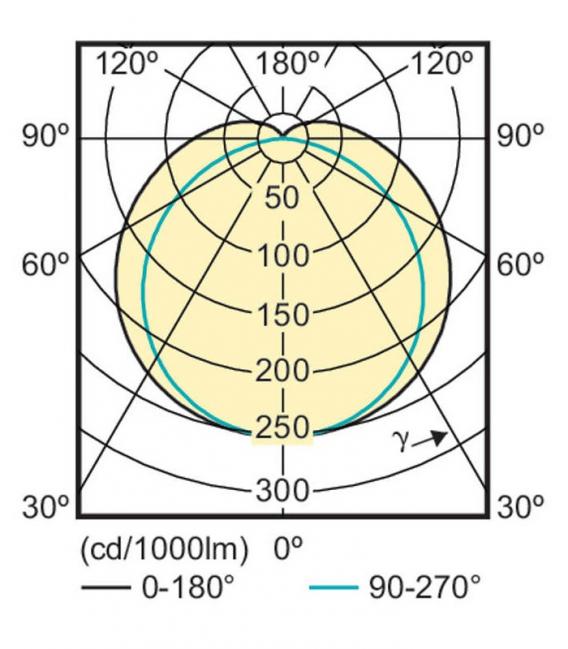

Beam Angle 150°
Luminous Flux (Rated) 2000 lm
Rated Beam Angle 150°
Correlated Color Temperature 6500 K
Color Consistency 6 steps
Color Rendering Index 80
LLMF At End Of Nominal Lifetime 70%
Input Frequency 50 - 60 Hz
Power (Rated) 20 W
Starting Time (Max) 0.5s
Warm Up Time To 60% Light instant full light
Power Factor (Min) 0.9
Voltage 220 - 240 V
T-Ambient (Max) 45 °C
T-Ambient (Min) –20 °C
T-Storage (Max) 65 °C
T-Storage (Min) –40 °C
T-Case Maximum 56 °C
Dimmable No

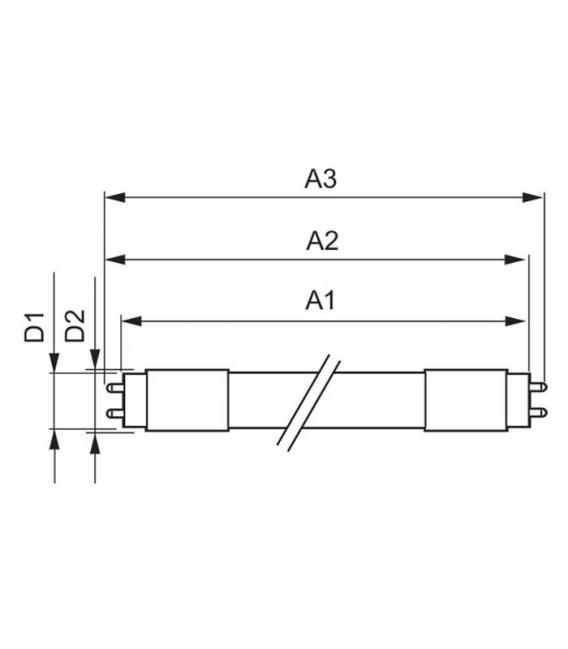

Length A1 1500 mm
Fixing Hole Distance A2 Length 1507.1 mm
Length A3 1514.2 mm
Mounting hole diameter 25.68 mm
Circular outline dimension 28 mm
Energy Saving Product Yes
Suitable For Accent Lighting No
Energy Efficiency Label (EEL) A+
Approval Marks: CE marking, RoHS compliance, KEMA Keur certificate
Energy Consumption kWh/1000 h 20 kWh

Benefits
• Minimizes overall lighting costs
• Offers cheapest and easiest upgrade to Led lighting technology

Features
• Only 50% energy consumption compared to fluorescent tubes
• Lasts two times longer than fluorescent tubes
• Retrofit replacement of existing T8 lamps on electromagnetic (EM) ballast installations

Applications
• Parking lots and covered car parks
• Warehouses and coldrooms
• Signage

Download CorePro-QIG-v6-web.pdf

General safety informations
