LED driver PWM 60 12 12V 60W IP67 brighten your home with dimmable

This Dimmable LED driver PWM 60 12 12V 60W IP67 is the perfect choice for your lighting needs. With its adjustable brightness and waterproof design, you can cr

Introducing Our Dimmable LED Driver PWM 60 12 12V 60W IP67

Are you in search of an advanced LED driver that offers unparalleled performance and flexibility? Look no further than our Dimmable LED driver PWM 60 12 12V 60W IP67. This cutting-edge product is designed to revolutionize your lighting experience, providing you with a wide range of features and benefits that will elevate your lighting projects to new heights. With its impressive technical data and adherence to stringent safety standards, this LED driver is the perfect choice for both residential and commercial applications. Discover the world of lighting innovation with our Dimmable LED driver!

Unlocking the Potential: A Comprehensive Look

Description

Our Dimmable LED driver PWM 60 12 12V 60W IP67 is the ultimate solution for all your lighting needs. This exceptional LED driver is engineered to perfection, offering an array of features that make it a standout choice. With universal AC input and a full input range of up to 305 VAC, this driver ensures compatibility with various power sources. The built-in active PFC function enhances power efficiency, while the constant voltage PWM style output guarantees stable and reliable performance.

Features:

• Universal AC input / Full range (up to 305 VAC)
• Built-in active PFC function
• Constant voltage PWM style output

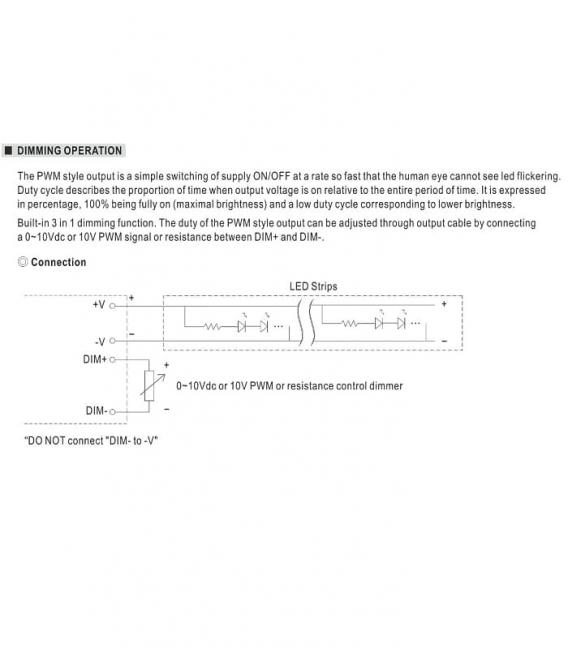

• Built-in 3 in 1 dimming function (0~10 VDC or PWM signal or resistance)
• Dimming range: 0~100%
• High efficiency up to 90%
• Protections: Short circuit/ Over load/ Over voltage/ Over temperature
• Class II power unit, no FG
• Suitable for dry/ damp/ wet locations
• No load power consumption <0.5 W
• IP67
• 5 years warranty

Illuminate with Confidence: The Benefits

The benefits of choosing our Dimmable LED driver are numerous. With a focus on safety and performance, this driver complies with UL8750, CSA C22.2 No. 250. 13-12, ENEC EN61347-1, EN61347-2-13, EN62384, and IP67 standards, while its design refers to EN60335-1, ensuring peace of mind and reliability. The input voltage range of 90305 VAC / 127431 VDC makes it versatile for various applications. Plus, with high efficiency and a compact form factor (150 × 53 × 35 mm), it's an excellent space-saving solution.

Technical Electrical Data:

• Input voltage range: 90305 VAC / 127431 VDC
• Input AC current: 0.8 A /115 VAC 0.4 A / 230 VAC 0.32 A / 277 VAC
• Output: DC 12 V / 5 A / 60 W
• Dimming range: 0~100%
• Input frequency range: 47~63Hz
• Efficiency: 86%

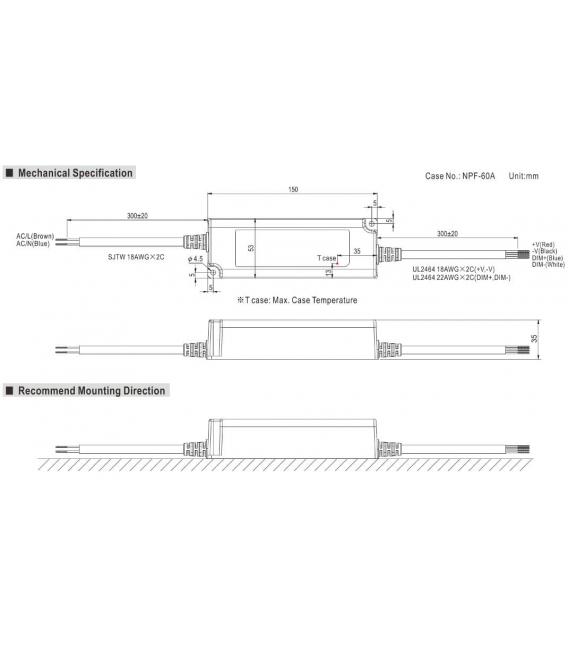

• Dimensions:150 × 53 × 35 mm
• Weight: 0.49 kg

Your Lighting Upgrade Awaits

In conclusion, our Dimmable LED driver PWM 60 12 12V 60W IP67 is a game-changer in the world of LED drivers. Its exceptional features, adherence to safety standards, and impressive technical data set it apart from the rest. Whether you're working on residential or commercial lighting projects, this driver's flexibility and reliability make it the perfect choice. Illuminate your spaces with confidence and efficiency. Upgrade to our Dimmable LED driver today and experience the future of lighting firsthand.

Suitable for:
• Led strip lighting
• Indoor Led lighting
• Led decorative lighting
• Led architecture lighting

Download PWM-60-SPEC.pdf
