LED driver PWM 40 24 24V 40W IP67 brighten your home with dimmable

This Dimmable LED driver PWM 40 24 24V 40W IP67 is the perfect choice for your lighting needs. With its adjustable brightness and waterproof design, you can cr

Unlock the Power of Light with Our Dimmable LED Driver PWM 40 24 24V 40W IP67

Elevate your lighting experience with our Dimmable LED driver PWM 40 24 24V 40W IP67. Designed to deliver exceptional performance and versatility, this cutting-edge LED driver is the perfect solution for all your lighting needs. Whether you're illuminating a residential space or a commercial environment, this driver is engineered to provide reliable and efficient power delivery. With a range of features and a robust build, it's time to explore how this LED driver can transform your lighting setup.

Features:

Universal AC input, compatible with a wide voltage range (up to 305 VAC)
Incorporates a built-in active Power Factor Correction (PFC) function
Offers constant voltage PWM style output for stable illumination

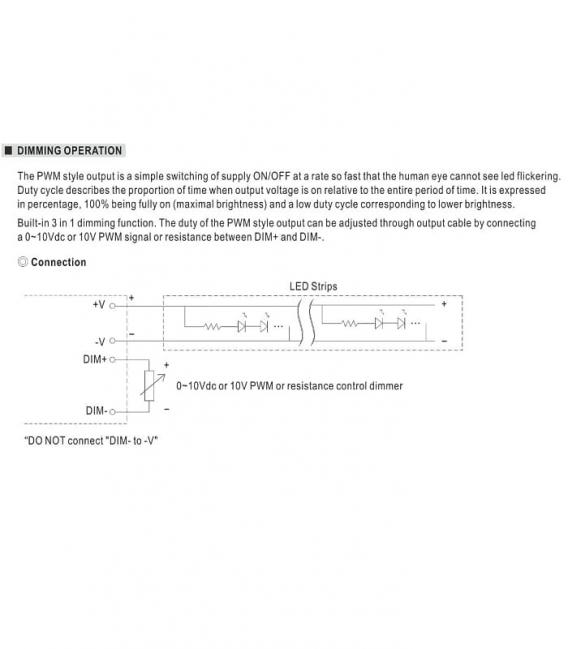

Includes a built-in 3-in-1 dimming function (0~10 VDC or PWM signal or resistance)
Dimming range from 0% to 100%
Achieves high efficiency up to 90%
Multiple protections: Short circuit, Overload, Over voltage, Over temperature
Class II power unit, no FG
Suitable for dry, damp, and wet locations
Minimal no-load power consumption (<0.5 W)

Download PWM-40-SPEC.pdf
