LED driver PWM 40 12 12V 40W IP67 brighten your home with dimmable

This Dimmable LED driver PWM 40 12 12V 40W IP67 is the perfect choice for your lighting needs. With its adjustable brightness and waterproof design, you can cr

Discover the future of lighting control with our PWM 40 12V 40W IP67 dimmable LED driver. This versatile and high performance LED driver is designed to revolutionise the way you light. Whether you are looking to enhance the ambience of your home, office or outdoor space, this product is designed to meet all your needs.

Up your lighting game with our PWM 40 12 12V 40W IP67 dimmable LED driver. This premium LED driver offers universal AC input as it supports a wide voltage range up to 305 VAC, making it compatible with a variety of electrical systems. The built-in active PFC (Power Factor Correction) function ensures optimum energy efficiency as it has an outstanding efficiency of up to 90%. This means you can enjoy excellent illumination and save on energy costs at the same time.

Features:

• Universal AC input with full range support up to 305 VAC
• Built-in active PFC function for energy efficiency
• Constant PWM-style output voltage for stable illumination

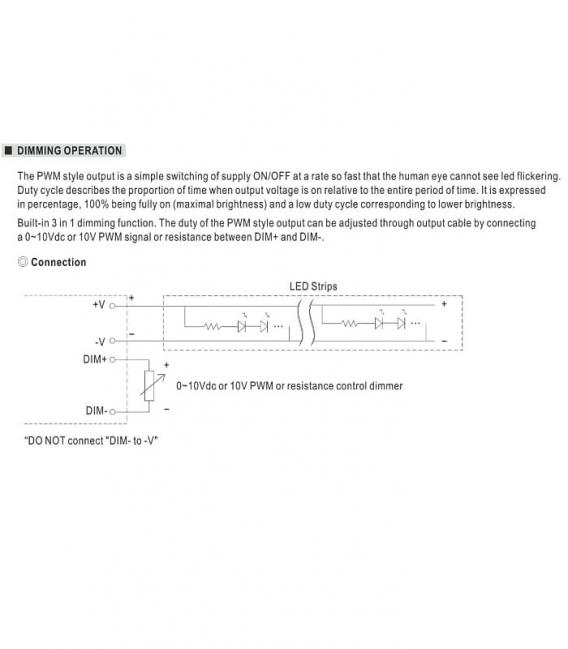

• 3-in-1 dimming function (0~10 VDC, PWM signal or resistor) for flexible brightness control
• Wide dimming range from 0% to 100%
• Comprehensive protection functions against short circuits, overloads, overvoltage and overtemperature
• Class II power supply unit without functional mass (FG)
• Suitable for dry, humid or wet locations as it is IP67 rated
• Extremely low no-load power consumption (<0.5 W)
• Backed by a 5-year warranty to increase confidence

Application:

12 12V 40W IP67 changes the rules of the game for a wide range of applications. Whether you're an interior designer looking to create the perfect ambience in residential spaces, a facilities manager looking to optimise lighting in commercial buildings, or a gardener looking to add a touch of magic to an outdoor environment, this LED driver is your best solution.

Benefits:

• Outstanding versatility with universal AC input
• Energy efficient with built-in active PFC function
• Flexible light levels with 3-in-1 dimming
• Reliable and durable with robust protection features
• Suitable for a variety of indoor and outdoor environments
• Minimal power consumption with low no-load power consumption
• Long-term safety with 5-year warranty

Technical data:

Input voltage range: 90305VAC / 127431VDC
AC input current: 0.6 A / 115 VAC, 0.3 A / 230 VAC, 0.25 A / 277 VAC
Output current: 0.5 m (0.5 VAC): 12 V DC / 3.34 A / 40.08 W
Dimming range: 0~100%
Input Frequency Range: 100% to 100%: 47~63 Hz
Efficiency: 86%

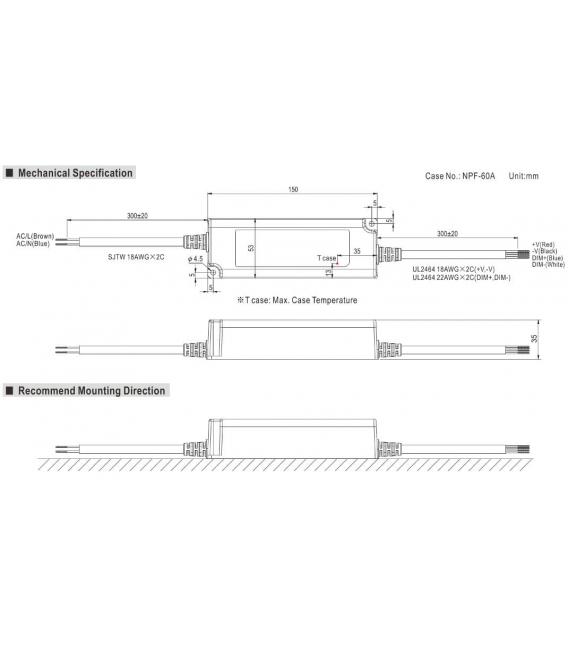

Dimensions:150 × 53 × 35 mm
Weight: 0.49 kg

In conclusion, the PWM 40 12 12V 40W IP67 dimmable LED driver is your gateway to brighter, more efficient and more flexible lighting. With its outstanding features, versatility of use and outstanding technical specifications, it is the perfect choice for anyone looking to improve lighting control. Don't settle for conventional lighting - unlock exceptional possibilities with our PWM 40 12 12V 40W IP67 dimmable LED driver.

Suitable for:
- LED strips
- Indoor LED lighting
- LED decorative lighting
- LED architectural lighting

Download PWM-40-SPEC.pdf
