LED driver APC 16 700 24V 17W IP30 brighten your home with constant

Mean Well LED driver APC 16 700 24V 17W IP30 brighten your home with constant 9. This LED driver APC 16 700 9 24V 17W IP30 is the perfect choice for your lighting needs. With its advanced technology and superior performance, you can be sure

This LED driver is perfect for your Led lighting and moving sign applications. It features a constant current design, universal AC input/full range, short circuit/over voltage protection, fully isolated plastic case with cooling by free air convection. UL8750 & CSA approved with IP30 rating and TUV EN61347-1 design reference. Input voltage 90~264VAC/127~370VDC; output 9-24V/700mA/16.8W; efficiency 83%; dimensions 77x40x29mm; weight 0.1kg.

Suitable for Led lighting and moving sign applications (moving Led display). The LED driver has a constant current design that ensures stable performance and longevity of the LEDs. With its universal AC input/full range capability, it can be used in various locations without worrying about compatibility issues.

• Constant current design ensures stable performance
• Universal AC input/full range allows for versatile use
• Short circuit/over voltage protection safeguards against potential damage to the LEDs or the driver itself
• Fully isolated plastic case with cooling by free air convection prevents overheating and extends the lifespan of the driver
• UL8750 & CSA approved with IP30 rating guarantees safety and reliability
• TUV EN61347-1 design reference provides additional assurance of quality standards being met

• Constant current design for stable performance
• Universal AC input / Full range
• Short circuit / Over voltage protection
• Fully isolated plastic case
• Cooling by free air convection
• IP30 rating for protection against dust and moisture

• Input voltage: 90 ~ 264 VAC / 127 ~ 370 VDC
• Input ac current: 0.3A / 230 VAC, 0.5 A / 115 VAC
• Output: 9-24V /700mA/16.8W
• Efficiency:83%

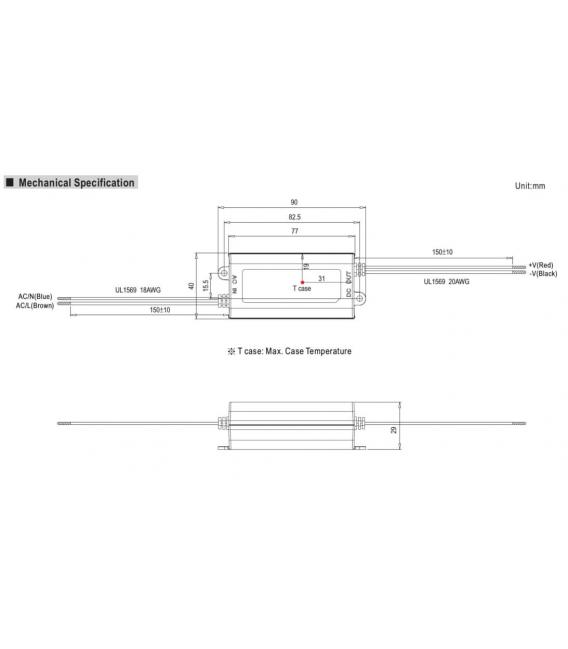

• Dimensions: 77 ×40×29mm
• Weight:0.1kg

Warning!Please indicate any warnings here.

This LED driver is the perfect solution for your LED lighting and moving sign applications. With its constant current design, it ensures stable performance and longevity of your LEDs. The universal AC input/full range capability allows you to use it in various locations without worrying about compatibility issues.

The short circuit/over voltage protection safeguards against potential damage to both the LEDs and the driver itself, providing peace of mind during operation. The fully isolated plastic case with cooling by free air convection prevents overheating, ensuring reliable performance over time.

The UL8750 & CSA approval with an IP30 rating guarantees safety and reliability, while the TUV EN61347-1 design reference provides additional assurance of quality standards being met.

Download APC-16-SPEC.pdf
