Vossloh Schwabe VS Capacitor 32mF D45/L90 250V 41058

503258

-

Vossloh Schwabe

-

503258

Parallel capacitor with an aluminium casing for fluorescent lamps (T,TC) and discharge lamps (HS, HI, HM) 250V, 50/60 Hz. Type A.

More details

6,74€tax excl.


Weight: 0.14 kg
Delivery: 1 to 3 days
Condition: New product
Factory Box - pieces (pcs): 32

- +


Suggest price
  • PDF Product datasheet
  • Volume discounts

    Quantity Discount You Save
    10 4% Up to 2,70€
    25 8% Up to 13,48€
    100 12% Up to 80,88€
    0
      0 / 5 - 0 reviews  Add Review





    More info

    Type A Capacitors with an Aluminium Casing – 250V.
    For HS/HI/HM/LS Discharge Lamps.
    Type: 41058
    Capacity: 32mF

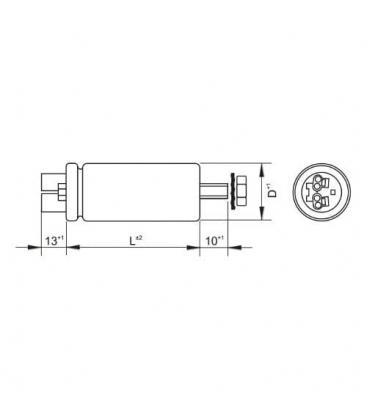

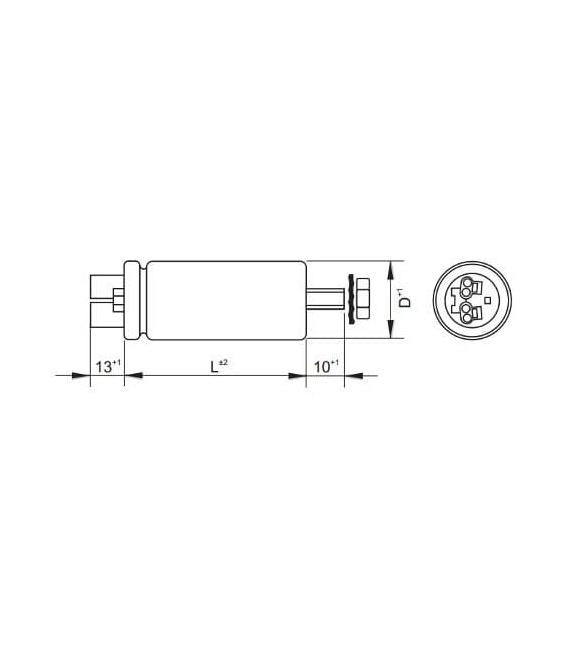

    Dimension / Lenght mm: 45/90
    Mounting: M8 x 10 bolt
    Filled / Dry: Dry
    Terminal: Push-in terminal
    Thermal fuse: -
    Approval mark: II


    Technical Details of Vossloh-Schwabe Parallel Capacitors
    All VS capacitors comply with IEC 61048 A2 (Safety) and IEC 61049 (Operation). Capacitors rated 250V and 280V also bear the ENEC mark.

    Nominal voltage
    -250V, 50/60 Hz;
    -280V, 50/60 Hz;
    -450V, 50/60 Hz (dependent on type)

    Capacitance tolerance: ±10 %; ±5 %

    Temperature range: –40 to +85 °C

    Relative humidity load:
    -Class F for Type B capacitors
    -75 % annual mean
    -95 % peak value on 30 days
    -Class G for Type A capacitors
    -65 % annual mean
    -85 % peak value on 30 days

    Capacitors must not be subjected to condensation

    Failure rates it maximum voltage, current and temperature values are complied with = 1 ‰ per 1000 operating hours

    Permissible torque on the base screw:
    -M8x10 – 5.0 Nm (aluminium casing)
    -M8x10 – 2.2 Nm (plastic casing)

    Split fixing pins with a clearance of 20 mm for plastic casings (side clip)

    Optional thermal fuse (Type A capacitors)

    Connecting wires:
    Parallel capacitors for fluorescent lamps
    -Casing diameter 25–30 mm: 0.5-–1 mm2 and IDC terminals for H05V-U 0.5 conductors
    -Casing diameter >30 mm: 0.5–1 mm2 parallel capacitors for high-pressure lamps

    Casing diameter 25–30 mm: 0,5–1 mm2 and IDC terminals for H05V-U 0.5 conductors

    Casing diameter >30 mm: 0.5–1.5 mm2
