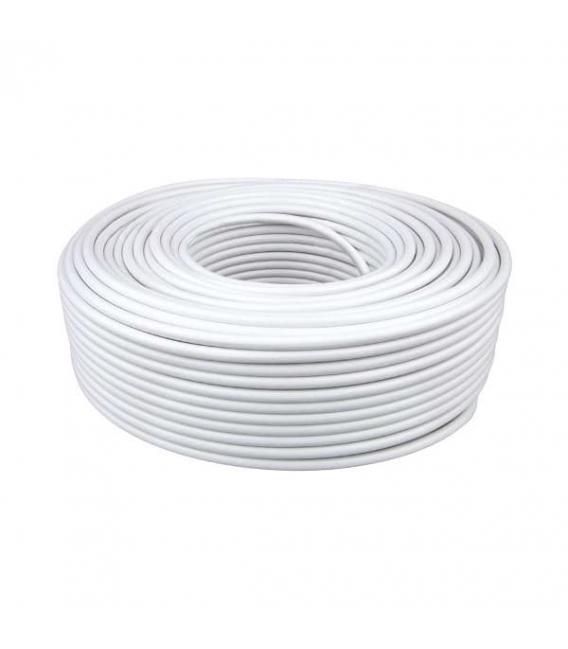

Emos Coaxial Cable CB130

311757 | Manufacturer: Emos | EAN: 8595025311757 | MPN: S5381

Coaxial Cable 75 Ω CB130, universal coaxial cable, FPE dielectric.


0,22 €tax excl.

Price for 1 piece, excluding shipping costs!
Condition: New product
Factory Box - pieces (pcs): 100

-+

More info

More info

Price is for 1 meter

type: coaxial cable CB130
dielectric type, diameter: FPE 4.8 mm
I. foil shielding: 1 × Al / PES
the diameter of the shield: 32 × 0.12mm²
28%
Shielding II. film: without
shielding material: aluminum (Al)
the color of the cable jacket: white
capacity (pF/m): 55
shortening factor: 0.84
max. attenuation at 20 °C (dB / 100 m) 10MHz: 2.3
max. attenuation at 20 °C (dB / 100 m) 100 MHz: 7.4
max. attenuation at 20 °C (dB / 100 m) 450 MHz: 15.5
max. attenuation at 20 °C (dB / 100 m) 650 MHz: 18.2
max. attenuation at 20 °C (dB / 100 m) 860 MHz: 20.8
max. attenuation at 20 °C (dB / 100 m), 1000 MHz: 22.5
max. attenuation at 20 °C (dB / 100 m) 2000 MHz: 34
min. Damping deduction at 20 °C (dB) 300-600 MHz: 23
min. Damping deduction at 20 °C (dB) 600-900 MHz: 20
min. damping shield in (dB) 10 ~ 800 MHz: 75
PE = polyethylene dielectric: no
max. resistance at 20 °C (Ω / km) - the inner core is 25.7
max. resistance at 20 °C (Ω / km) - 45.9 outer core
the insulation resistance between the core at 20 °C (MΩ/km): 500
min. bending radius of single / multiple: 30/60 mm
weight (kg/km): 40.5
min. Damping deduction at 20 °C (dB) 10-300 MHz: 25
storage temperature: -20 °C to +75 °C
mounting temperature: +5 °C to +60 °C
method of packaging: the length of 100m
method of packaging: type coil paper boxes with printing
method of packaging coup. per meter: yes
recommended types of connectors - pressing F: * K7220
recommended types of connectors - Screw F: * K7331
PES = foil layer: no
FPE = foam dielectric: yes
APE = air dielectric: no
shield number: 2
impedance: 75 Ω
the material of the cable jacket: PVC
the inner core material: with copper clad steel wire (CCS)
not UV resistant
the number of shield wires: 32 × 0.12 mm
the diameter of the cable jacket: 6.8 mm
diameter of the inner conductor: 1.02 mm
suitable for outdoor use: not
1 Roll is 100m

Factory Box - pieces (pcs)100
