534487 | Manufacturer: Vossloh Schwabe | EAN: 4050732483158 | MPN: 571048
ballasts NAHJ 1000 089 220V 50Hz HS HI magnetic
The Ballast NAHJ 1000.089 220V 50Hz HS HI is a standard magnetic ballast that is vacuum-impregnated with polyester resin for durability. With screw terminals ranging from 0.75 to 2.5 mm², it offers easy installation. This ballast has a protection class I and is compatible with HS and HI lamps. It provides an output of 1000W and operates at a voltage of 220V with a frequency of 50Hz. Its compact shape (92 ×102 mm) and dimensions (203 ×188 ×124 mm) make it suitable for various applications. Energy-efficient with an A2 rating, this ballast ensures reliable performance for your lighting needs.
More info
Vossloh Schwabe ballasts NAHJ 1000 089 220V 50Hz HS HI magnetic Ballast. Enhance your lighting with the Ballast NAHJ 1000.089. Experience reliable performance and energy efficiency this magnetic ballast for 220V 50Hz HS HI bulbs.
Standard ballast
Vacuum-impregnated with polyester resin
Screw terminals: 0.75 - 2.5 mm²
Protection class I
Lamp type: HS, HI
Output [W]: 1000
Voltage [V]: 220
Frequency [Hz]: 50
Shape: 92 × 102 mm

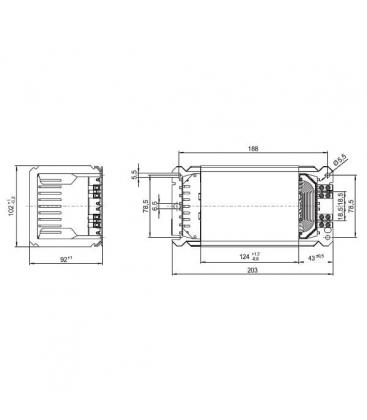

Dimensions (a × b × c): 203 × 188 × 124 mm
Energy efficiency: A2
| Explanation Dimmable | no |
| Explanation Voltage - (V) | 220 |
| Explanation Wattage - (W) | 1000 |
| Explanation Energy consumption - (kWh / 1000h) | 1000 |
| Explanation Factory packed - (pieces) | 1 |
