503871 | Manufacturer: Vossloh Schwabe | EAN: 8712251078340 | MPN: 503871
ballasts LN18I 850 220V 50Hz TC magnetic
The Ballast LN18I.850 220V 50Hz TC-D T is a standard magnetic ballast that is vacuum-impregnated with polyester resin for durability. It features push-in terminals for easy lead connection and IDC terminals for automatic luminaire wiring. With a protection class I, it supports compact fluorescent lamps TC-D/-T (G24d-2/GX24d-2) with an output of 18W. Operating at a voltage of 230V and frequency of 50Hz, this ballast has dimensions of 85 × 75 × 34 mm and energy efficiency rating B2.
More info
More info
Vossloh Schwabe ballasts LN18I 850 220V 50Hz TC magnetic Ballast D T. Enhance your lighting with Ballast LN18I.850 220V 50Hz TC-D T, a magnetic ballast for optimal performance and efficiency. Upgrade now
Standard ballast
Vacuum-impregnated with polyester resin
Push-in terminal for leads: 0.5 - 1 mm²
For the automatic luminaire wiring: IDC terminals for leads H05 V-U 0.5
Protection class I
Lamp type: TC-D/-T
Output [W]: 18 for compact fluorescent lamps TC-D/-T (G24d-2/GX24d-2)
Voltage [V]: 230
Frequency [Hz]: 50
Shape: 28 × 41 mm

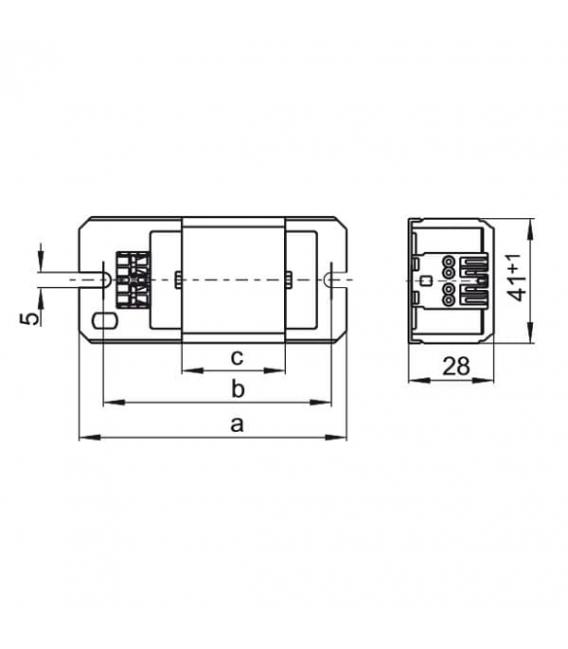

Dimensions (a × b × c): 85 × 75 × 34 mm
Energy efficiency: B2
| Explanation Dimmable | no |
| Explanation Voltage - (V) | 220 |
| Explanation Factory packed - (pieces) | 10 |
