161707 | Manufacturer: Vossloh Schwabe | EAN: 4014364364995 | MPN: 570964
ballasts NAHJ 100 941 230 240V 50Hz HS HI magnetic
The Ballast NAHJ 100.941 230-240V 50Hz HS HI is a standard magnetic ballast for traditional lamps and fluorescent tubes. With vacuum-impregnated polyester resin, it offers reliable performance. Featuring screw terminals suitable for 0.5 - 2.5 mm² wires, it ensures easy installation. This ballast has a protection class I rating and supports HS and HI lamp types with an output of 100W. Operating at voltages between 230-240V and a frequency of 50Hz, its compact shape (53 × 66 mm) makes it convenient to use in various applications while maintaining energy efficiency (EEI=A3).
More info
More info
Vossloh Schwabe ballasts NAHJ 100 941 230 240V 50Hz HS HI magnetic Ballast. Enhance your lighting with the Ballast NAHJ 100.941 for smooth operation at 230-240V, 50Hz. Experience high performance in magnetic ballasts.
Standard ballast
Vacuum-impregnated with polyester resin
Screw terminals: 0.5 - 2.5 mm²
Protection class I
Lamp type: HS, HI
Output [W]: 100
Voltage [V]: 230 - 240
Frequency [Hz]: 50

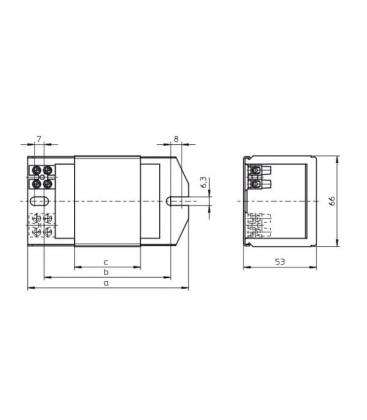

Shape: 53 × 66 mm
Dimensions (a × b × c): 108 × 86 × 42 mm
Energy efficiency: EEI=A3
| Explanation Dimmable | no |
| Explanation Voltage - (V) | 220 |
| Explanation Wattage - (W) | 100 |
| Explanation Energy consumption - (kWh / 1000h) | 100 |
| Explanation Factory packed - (pieces) | 10 |
