672625 | Manufacturer: Vossloh Schwabe | EAN: 4014364672625 | MPN: 167263
ballasts Q125 568 220V 50Hz HM magnetic
The Ballast Q125.568 220V 50Hz HM is a standard magnetic ballast, vacuum-impregnated with polyester resin for durability. With screw terminals ranging from 0.5 to 2.5 mm², it offers easy installation and protection class I safety standards. Designed for HM lamps, it provides an output of 125W at a voltage of 230V and frequency of 50Hz. Its compact shape measures at 53 × 66 mm, while its overall dimensions are 108 ×86 ×36 mm (a × b × c). Achieve energy efficiency with EEI=A3 rating!
More info
More info
Vossloh Schwabe ballasts Q125 568 220V 50Hz HM magnetic Ballast. Enhance your lighting with the Ballast Q125.568 220V 50Hz HM, a magnetic ballast that ensures optimal performance for fixtures.
Standard ballast
Vacuum-impregnated with polyester resin
Screw terminals: 0.5 - 2.5 mm²
Protection class I
Lamp type: HM
Output [W]: 125
Voltage [V]: 230
Frequency [Hz]: 50

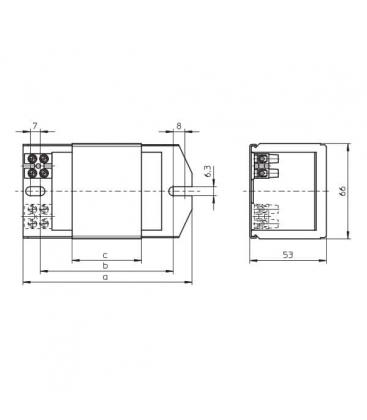

Shape: 53 × 66 mm
Dimensions (a × b × c): 108 × 86 × 36 mm
Energy efficiency: EEI=A3
| Explanation Dimmable | no |
| Explanation Voltage - (V) | 220 |
| Explanation Wattage - (W) | 125 |
| Explanation Energy consumption - (kWh / 1000h) | 125 |
| Explanation Factory packed - (pieces) | 10 |
