696459 | Manufacturer: Vossloh Schwabe | EAN: 4050732696459 | MPN: 169645

ballasts LN30 801 220V 50Hz T8 magnetic


Product is out of production!

The Ballast LN30.801 220V 50Hz T8 is a standard magnetic ballast for traditional lamps and fluorescent tubes. It features vacuum-impregnated polyester resin, push-in terminals for leads, IDC terminals for automatic luminaire wiring, and protection class I. With an output of 2 × 15, 30 watts for T8 fluorescent lamps (G13), this ballast operates at a voltage of 230V and frequency of 50Hz. Its compact shape measures at 28 × 41 mm with overall dimensions of 150 × 140 ×60 mm. Energy efficiency rating: B2.

    More info

    More info

    Vossloh Schwabe ballasts LN30 801 220V 50Hz T8 magnetic Ballast. Enhance your lighting with the Ballast LN30.801 220V 50Hz T8 magnetic ballast. Experience efficient power for bulbs like never before.

    Standard ballast
    Vacuum-impregnated with polyester resin
    Push-in terminal for leads: 0.5 - 1 mm²
    For the automatic luminaire wiring: IDC terminals for leads H05 V-U 0.5
    Protection class I
    Lamp type: T8
    Output [W]: 2 × 15, 30 for fluorescent lamps T8 (G13)
    Voltage [V]: 230
    Frequency [Hz]: 50
    Shape: 28 × 41 mm

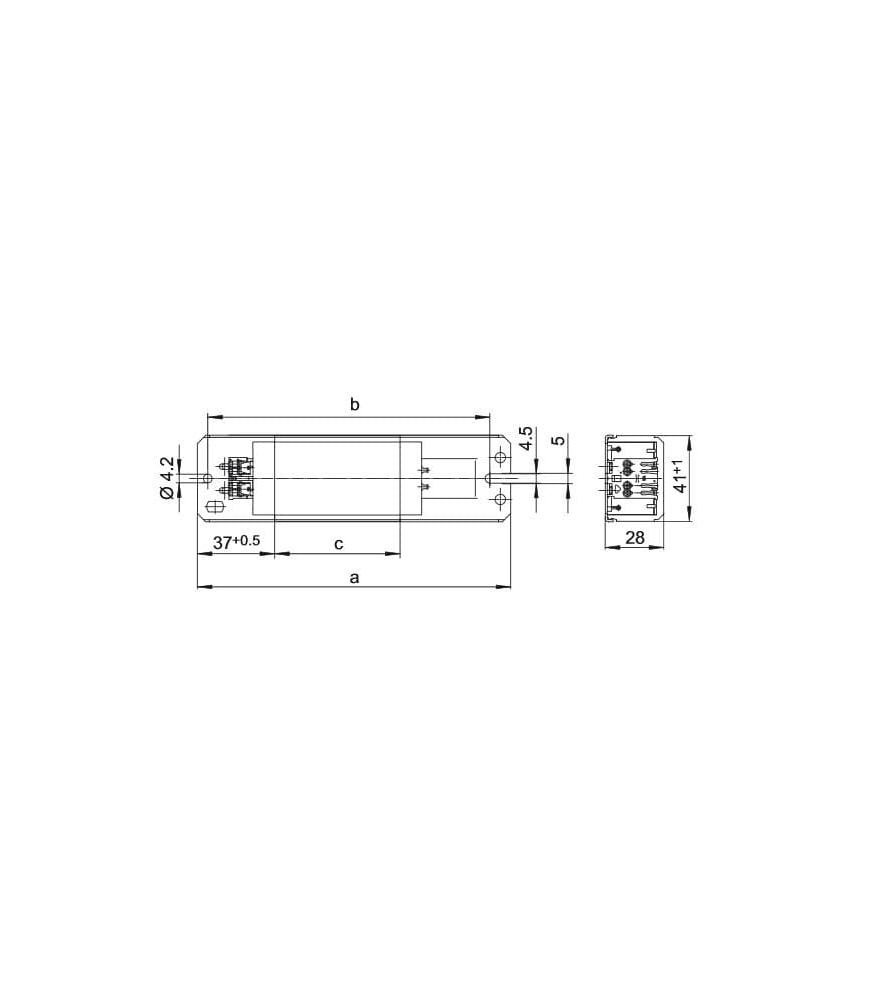

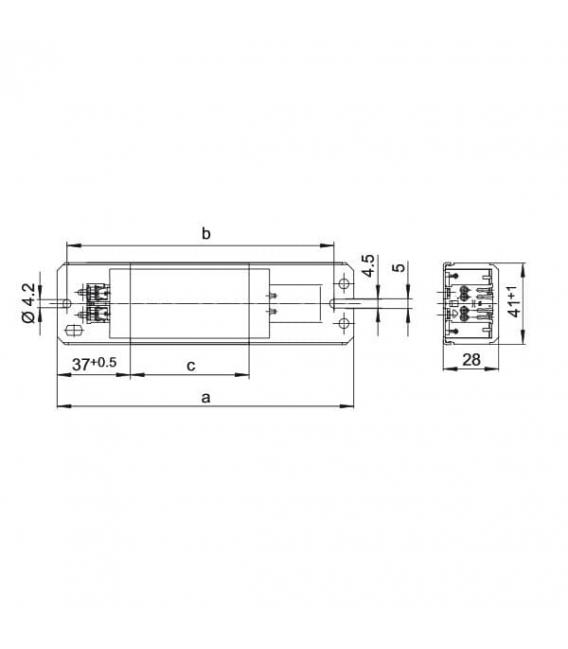

    Dimensions (a × b × c): 150 × 140 × 60 mm
    Energy efficiency: B2

    Explanation Dimmable no
    Explanation Voltage - (V) 220
    Explanation Factory packed - (pieces) 10
