HF 114 35 TL5 HE III 220V electronic ballasts

Discover the HF P 114 35 TL5 HE III 220V electronic ballast efficient, reliable, and energy-saving. Upgrade your lighting system today

Application code III
Rated Lamptype TL5 HE
Rated Number of Lamps 1 piece
Rated Ballast-Lamp Power 14-35 W
Line Voltage 220 - 240 V
Line Frequency 50 - 60 Hz
Housing L 360 × 30 × 22
Energy Efficiency Index A2 BAT
Lifetime 90% surv.@Tcaselife 50000 h
Ignition Method Programmed Start
Automatic restart Yes
Ignition time 1.2 (max) s
Operating frequency 46 kHz
Mains voltage safety (AC) –10% /+10%
Mains voltage performance (AC) -8% /+6%
Inrush current Peak 24 (max) A
Inrush current Width 0.25ms
Earth leakage current 0.5 mA
Power losses gear 2.0-3 W
Constant wattage deviation -2% /+2%
Ballast Lumen Factor 0.925 -
PowerFactor 100% output power 0.99 -
Battery voltage lamp ignition 186 - 275 V
Battery voltage running lamps 186 - 275 V
Overvoltage protection 320 V 48 hr
Overvoltage protection 350 V 2 hr
Crestfactor 1.7 (max) -
Hum and Noise level < 30 dB(A)
Cable-Cap outputwires to earth 200 pF
Cable-Cap outputwires mutual 200 pF
Conn.type input terminals WAGO 251 universal connector [Suitable for both automatic wiring (ALF and ADS) and manual wiring]
Conn.type output terminals WAGO 251 universal connector [Suitable for both automatic wiring (ALF and ADS) and manual wiring]
Max. cable length Hot Wires 0.75m
Striplength 8.0-9 mm
Dual fixture Master/Slave Not applicable [Master/Slave oper. not applicable]
Wcs Input terminals 0.50 - 1 mm²
Wcs Output terminals 0.50 - 1 mm²
Rated Lamp Power on TL5 HE 14/35 W
System Power on TL5 HE 16.0/39.5 W
Lamp Power on TL5 HE 14.0/36.5 W
Power Loss on TL5 HE 2.0/3 W
T-case life 80 C
T-case maximum 80 (max) °C
T-ignition -25 (min), 60 (max) °C
T-ambient -25 (min), 60 (max) °C
T-storage -40 (min), 80 (max) °C
Bal lm Fac Emergency operation 0.7 -
Light output after 5 sec 50% of EBLF
Light output after 60 sec 100% of EBLF
Normal operating voltage (DC) 220 - 240 V
Batt volt guaranteed ignition 186 - 275 V
Batt volt guaranteed operation 176 - 275 V

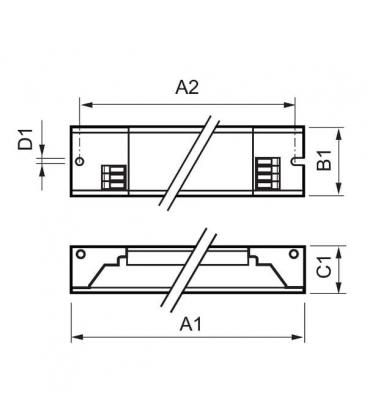

Length A1 360 mm
Fixing Hole Distance Length A2 350 mm
Width B1 30 mm
Height C1 22 mm
Fixing Hole Diameter D1 4.2 mm
Approval marks ENEC / VDE-EMV
CE marking Yes
Temperature marking 110 [Yes]
Emergency standard IEC 60598-2-22

Benefits
• An energy-efficient solution
• The programmed start enables the lamp to be switched on and off without reducing useful lamp life.
• DC emergency operation in line with IEC/EN 60598-2-22 luminaire norms
• Smart power ensures constant light, irrespective of mains-voltage fluctuations
• Suitable for luminaires in protection class I and, after testing, class II
• The universal connector Wago 251 offers the flexibility for horizontal-manual or push-in robot wiring or vertical ALF-robot wiring.

Features
• Robust design for 100000 hours lifetime at Ta=50˚C and over 100000 on/off switching operations on one lamp
• Programmed, flicker-free, pre-heated start ( < 0.5s) which allows the lamp to be switched on and off without reducing useful lamp life
• Active power factor correction to ensure constant light, irrespective of mains-voltage fluctuations
• The unit is protected against excessive mains voltage and incorrect connections.

Applications
• Used with movement-detection control systems like Philips OccuPlus
• Indoor applications, such as office buildings, hospitals, supermarkets, department stores, industrial premises and schools
• Class I outdoor applications, e.g. industrial premises and parking lots

General safety informations
