Ballasts, electronic

Philips HF M BLUE 128 LH TL5 230 240V

932433 | Manufacturer: Philips | EAN: 8711500932433 | MPN: 913700419966

HF-Matchbox Blue is an affordable, reliable, compact, lightweight and high-frequency ballast. The HF-M Blue range has a robust design, meets all relevant international safety and performance standards and has an energy efficiency index (CELMA EEI ) of A2.


12,54 €tax excl.

Price for 1 piece, excluding shipping costs!
Condition: New product
Factory Box - pieces (pcs): 50

-+

By buying this product you can collect up to 2 loyalty points. Your cart will total 2 points, that can be converted into a voucher of 0,20 €.

More info

Lamp Type TL5
Number of Lamps 1 piece/unit
Automatic Restart Yes

Input Voltage 230 to 240V
Input Frequency 50 to 60Hz
Power Factor 100% Load (Nom) 0.63
Ignition Time (Max) 0.5s
Mains Voltage Performance (AC) -8% -+6%
Mains Voltage Safety (AC) -10% -+10%
Power Losses (Nom) 4.5W

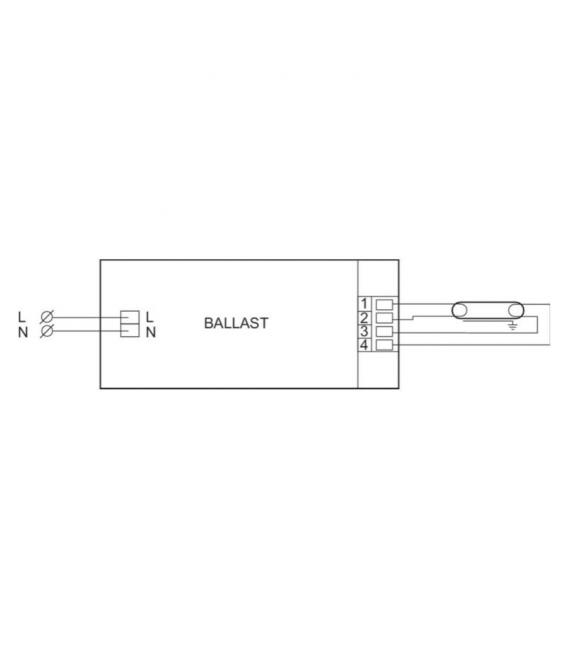

Connector Type Input Terminals Insert
Color Input Terminals Blue
Color Output Terminals Grey
Connector Type Output Terminals Insert
Cable Length From Device to Lamp 1.50m
Cable Length Hot Wiring 0.30m
Wire Striplength 8.0-9 mm
Input Terminal Cross Section 0.50-1.50mm²
Output Terminal Cross Section 0.50-1.50mm²

Rated Ballast-Lamp Power 28W
Rated Lamp Power on TL5 28W
System Power on TL5 24.1W
Lamp Power on TL5 19.6W
Power Loss on TL5 4.5W

T-Ambient (Max) 40 °C
T-Ambient (Min) -10 °C
T-Case Maximum (Max) 75 °C

Housing LH

Battery Voltage Lamp Ignition 194-254V

IP Classification IP 20 [ Ingress Protection 20]
Approval Marks F-Marking, CE marking, VDE certificate, CB Certificate

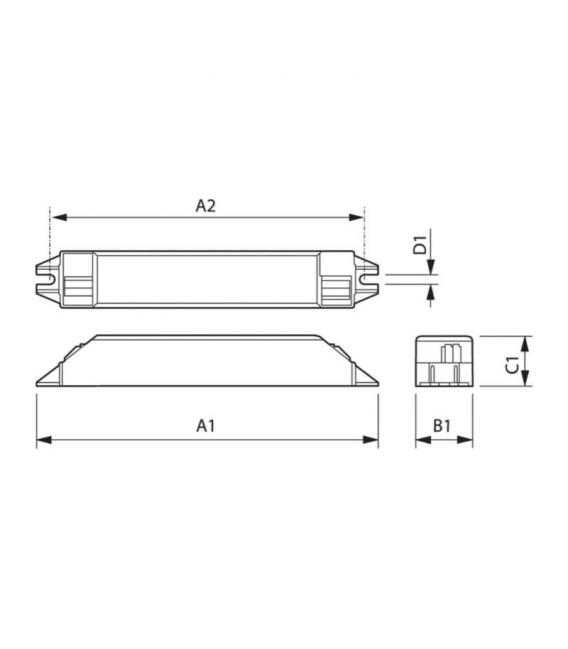

Length A1 187 mm
Fixing Hole Distance Length A2 180 mm
Width B1 22 mm
Height C1 22 mm
Fixing Hole Diameter D1 4.4 mm

Benefits
-Automatic restart (after voltage dip or lamp exchange) ensures easy operation and hassle-free re-lamping.
-Suitable for use in class I or class II luminaires

Features
-Suitable for emergency DC operation between 190 and 254V
-Programmed, flicker-free, pre-heated start (<0.8 s); over 8000 on/off switches on one lamp (depending on lamp/ballast combination)
-Automatic restart (after voltage dip or lamp exchange) ensures easy operation and hassle-free re-lamping.

Applications
-Used with movement-detection control systems like Philips OccuPlus in applications where lamps burn for a long period of time and the switching cycle is infrequent (e.g. a maximum of three times per day)
-Mainly for indoor applications such as spotlights, downlights, light boxes, and emergency and security fixtures used largely in retail stores, office buildings, hotels, private homes and residential buildings
-Domestic applications such as outdoor garden lighting, garage areas, stairways

Data sheet

Data sheet: Ballasts, electronic HF M BLUE 128 LH TL5 230 240V

DimmableNo
Voltage - Volt (V)220
Wattage - Watt (W)28
International Protection Marking - (IPXX)IP20
Lifetime - hours (h)40000
Factory Box - pieces (pcs)50
Download

Download: Ballasts, electronic, HF M BLUE 128 LH TL5 230 240V
