Ballasts, electronic HID

Philips HID PV E 35/I 220V CDM

184218 | Manufacturer: Philips | EAN: 8718291184218 | MPN: 913700680666


34,90 €tax excl.

Price for 1 piece, excluding shipping costs!
Condition: New product
Factory Box - pieces (pcs): 10

By buying this product you can collect up to 6 loyalty points. Your cart will total 6 points, that can be converted into a voucher of 0,60 €.

-+

More info

More info

Single CDM lamp operation, single HID electronic gear – improves cost effectiveness and increases luminaire design flexibility.

Rated Lamptype CDM
Rated Number of Lamps 1 piece
Rated Ballast-Lamp Power 35
Line Voltage 220 - 240 V
Line Frequency 50 - 60 Hz
Housing /I
Lifetime 90% surv.@Tcaselife 30000 h
Automatic restart Yes
Ignition type Pulse
Ignition Voltage 3 (min), 5 (max)kV
Operating frequency 45-66 kHz
Mains voltage safety (AC) 180-264 V
Mains voltage performance (AC) -8% /+6%
Min. Mains voltage operational 180 (min) V
Inrush current Peak 26 (max) A
Inrush current Width 0.25ms
Power losses gear 5 W
PowerFactor 100% output power 0.95 -
Overvoltage protection 320 V 48 hr
Overvoltage protection 350 V 2 hr
Max ballast on MCB(16 A type B) 24 ×
Hum and Noise level 37 dB(A)
Cable-Cap outputwires mutual 120 pF
Connector type Insert
Max. cable length Device/Lamp 2 m
Wcs Ballast contacts 0.75-2.50 mm²
Active temperature protection No
F-marking Yes
T-case life 75 C
T-case maximum 75 (max) °C
T-ambient –20 (min), 50 (max) °C
T-storage -25 (min), 75 (max) °C

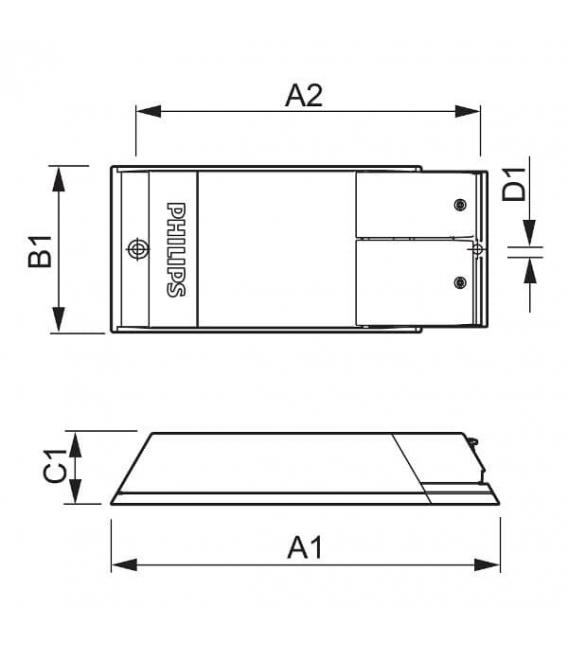

Length A1 189.2 mm
Fixing Hole Distance Length A2 170.7 mm
Width B1 83.5 mm
Height C1 34.7 mm
Fixing Hole Diameter D1 4.8 mm
PrimaVision Economy (35, 50 and 70W) for CDM - The cost-effective solution
• Cost-effective, plus design flexibility
• Optimal lamp performance thanks to minimal lamp power tolerance
• Lamp life increased by up to 30% for CDM lamps

Features
• Minimal lamp power spread
• Low gear energy losses
• Lamp end-of-life detection
• High Tambient and Tcase temperatures
• Lifetime of 30000 hours

Applications
• 35, 50 and 70W: accent and decorative lighting for shops, public spaces, lobbies and offices
• Suitable for indoor use only
• Available in standard (S) and independent (I) versions

DimmableNo
Voltage - Volt (V)220
Wattage - Watt (W)35
Energy consumption - (kWh / 1000h)35
Lifetime - hours (h)30000
Factory Box - pieces (pcs)10
