188349 | Manufacturer: Vossloh Schwabe | EAN: 4014364457031 | MPN: 188349
DALI elxd 258 620 2x58W T8 electronic dimmable ballasts
Product is out of production!
Product tags Product tags
The ELXd 258.620 2x58W T8 DALI is a high-quality electronic built-in ballast with a metal casing. It offers a dimming range of approximately 1-100% and has a power factor greater than 0.95 at full operation. With push-in terminals and IDC terminals for easy wiring, this RFI-suppressed ballast is suitable for luminaires of protection class I. Its low-power design ensures minimal standby power consumption, making it an energy-efficient choice. Designed for T8 fluorescent lamps (G13), this ballast operates at voltage AC of 220-240V and frequency of 50-60Hz in ambient temperatures ranging from 10 to 50°C.
More info
Vossloh Schwabe DALI elxd 258 620 2x58W T8 electronic dimmable ballasts Ballast. Discover the DALI ELXd 258.620 electronic dimmable ballast for T8 lamps. Achieve precise lighting control with this advanced solution.
Electronic built-in ballast
Casing: metal
Dimming range: approx. 1–100% of lamp power
Power factor: > 0.95 at 100% operation
DC voltage: for operation: 154–276 V, for ignition: 198 - 264 V
Push-in terminals with lever opener: 0.5 - 1 mm²
For the automatic luminaire wiring: IDC terminals for leads H05 V-U 0.5
RFI-suppressed
For luminaires of protection class I
Degree of protection: IP20

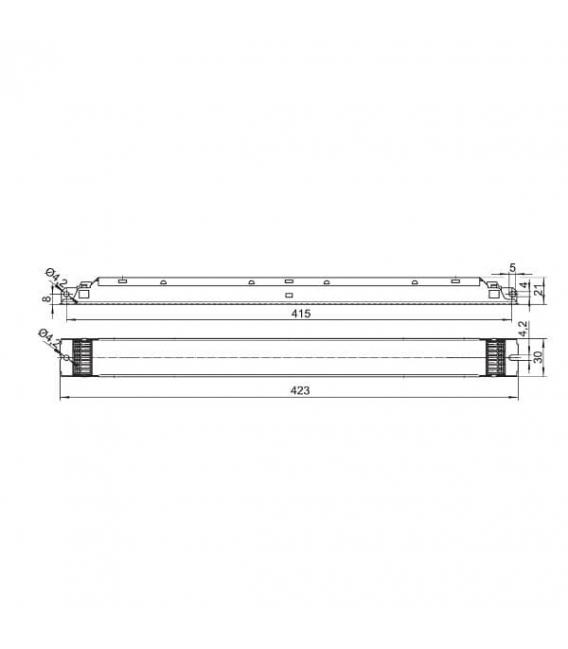

Fixing holes for screws M4 for lateral or base mounting
For lighting systems with high switching frequency ( > 5/day)
EOL shut down approved acc. to EN 61347 Test 2
Complete implementation of the DALI-standard: addressable, memory store for scenes and groups, revertive information communication, physical and RND-selection, standardized lamp characteristic
Low-power design ensures very low standby power consumption
Lamp type: T8
Output [W]: 2 × 58 for fluorescent lamps T8 (G13)
Lamp number: 2
Voltage AC [V]: 220 - 240
Frequency [Hz]: 50 - 60
Ambient temperature ( °C) 10…50
| Explanation Dimmable | yes |
| Explanation Voltage - (V) | 220 |
| Explanation Protection mark - (IPXX) | 20 |
| Explanation Factory packed - (pieces) | 10 |
