LED driver LPF 60 24 24V 60W IP67 brighten your home with mean well

This LED driver LPF 60 24 24V 60W IP67 is the perfect choice for your lighting needs. With its high-quality construction and reliable performance, you can trus

This LED driver LPF 60 24 24V 60W IP67 is the perfect choice for your Led lighting and moving sign applications. It features universal AC input, active PFC function, cooling by free air convection, fully isolated plastic case with IP67 rating and 5 years warranty. With UL8750, CSA C22.2 No. 250.0-08 approval and 90~305 VAC / 127~431 VDC input voltage range it offers 24V/2.5A/60W output with 89% efficiency in a compact size and lightweight package.

Suitable for Led lighting and moving sign applications (moving Led display). Universal AC input / Full range (up to 305 VAC). Built-in active PFC function ensures high power factor correction while cooling by free air convection prevents overheating of the device during operation. The fully isolated plastic case provides protection against dust and water ingress with an IP67 rating, making it suitable for use in dry, damp or wet locations.

- Suitable for various Led lighting applications- High efficiency of up to 89%- Compact size allows easy installation- Lightweight design makes handling convenient- Long lifespan ensures reliable performance- Wide input voltage range provides flexibility in usage- Active PFC function improves energy efficiency- Fully isolated plastic case protects against environmental factors

• Suitable for Led lighting and moving sign applications (moving Led display)
• Universal AC input / Full range (up to 305 VAC)
• Built-in active PFC function
• Cooling by free air convection
• Fully isolated plastic case
• IP67 rating for dust and water protection
• Class II power unit, no FG
• 5 years warranty
• Safety standards: UL8750, CSA C22.2 No. 250.0-08(except for 48 V, 54 V), ENEC EN61347-1, EN61347-2-13 independent, EN62384, IP67, J61347-1, J61347-2-13 approved ; design refer to UL60950-1, TUV EN60950-1

This LED driver is specifically designed for Led lighting and moving sign applications such as moving Led displays. It provides reliable power supply to ensure optimal performance of the LEDs in various settings.

• Input voltage: 90~305 VAC / 127~431 VDC
• Input ac current: 0.8 A / 115 VAC; 0.4 A / 230 VAC; 0.32 A /277V AC
• Output :24V/2 .5A/60W
• Efficiency :89%

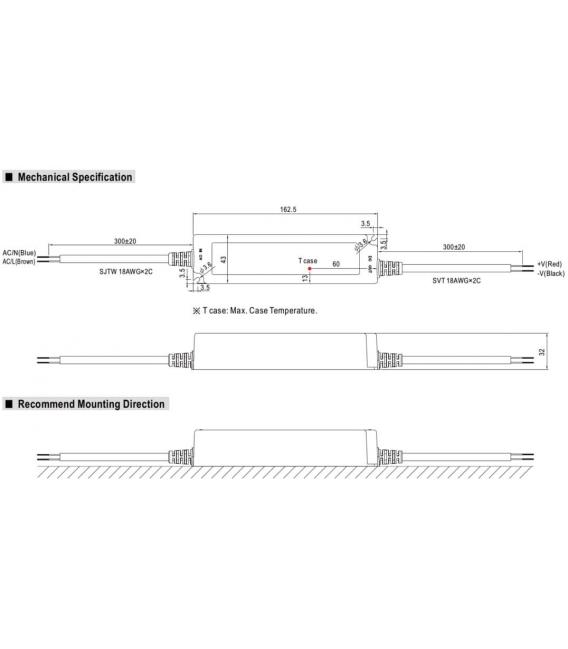

• Dimensions :162 .5 ×43×32mm
• Weight :0 .45kg

Please note that this product comes with a comprehensive warranty of five years.

Please consult a professional electrician or technician for proper installation and usage of this LED driver.

Warning: Do not expose the LED driver to extreme temperatures or moisture, as it may cause damage to the device and affect its performance. Always follow the safety guidelines provided in the user manual.

This LED driver LPF 60 24 24V 60W IP67 is a reliable and efficient solution for your Led lighting and moving sign applications. With its compact size, lightweight design, and high-quality features, it offers optimal performance and durability. Invest in this LED driver today to enhance your lighting experience.

Download LPF-60-SPEC.pdf
