LPF6012 | Manufacturer: Mean Well | MPN: LPF-60-12
LED driver LPF 60 12 12V 60W IP67

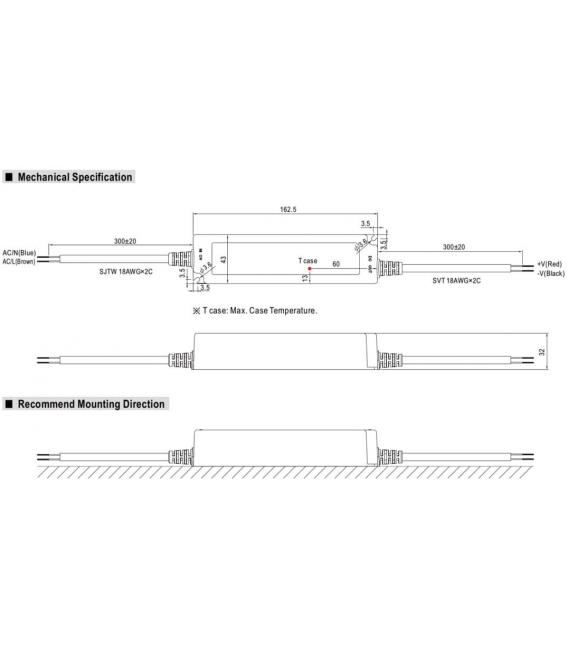

LED driver LPF 60 12 12V 60W IP67 Mean Well LPF series IP67 LED power supplies Description: The LED driver LPF 60 12 is designed for powering LED lighting and moving sign applications. With universal AC input, active PFC function, and IP67 rating, this driver ensures safety and reliability. It features short circuit/over current/over voltage protections, cooling by free air convection, and a fully isolated plastic case. Approved by UL8750/CSA C22.2 No.250-08 standards, this driver offers efficiency up to 86% with an output of 12V/5A/60W in a compact size weighing only 0.45 kg. Dimensions:162.5 ×43×32mm Weight:0.45 kg
More info
More info
This LED driver LPF 60 12 12V 60W IP67 is perfect for your Led lighting and moving sign applications. It features universal AC input, active PFC function, cooling by free air convection, fully isolated plastic case with IP67 rating and 5 years warranty. UL8750/CSA C22.2 No. 250-08 approved design ensures safety standards are met while 90~305 VAC/127~431 VDC input voltage and 0.8 A / 115 VAC 0.4 A / 230 VAC 0.32 A / 277 VAC input ac current provide reliable performance with an efficiency of up to
86% at a power output of
12V/5A/60W in a compact size weighing only
0,45 kg!Obstoječi opis izdelka:
Suitable for Led lighting and moving sign applications (moving Led display)
• Suitable for dry/damp/wet locations
• Universal AC input / Full range (up to
305 VAC)
• Protections: Short circuit/Over current/Over voltage/Over temperature
• Built-in active PFC function
• Cooling by free air convection
• Fully isolated plastic case
• IP67
• Class II power unit, no FG
• 5 years warranty
• SAFETY STANDARDS: UL8750, CSA C22.2 No. 250.0-08(except for 48 V, 54 V), ENEC EN61347-1, EN61347-2-13 independent, EN62384, IP67,
J61347-1,
J61347-2-13 approved; design refers to UL60950-1, TUV EN60950-1
• Input voltage: 90~305 VAC / 127~431 VDC
• Input ac current: 0.8 A / 115 VAC 0.4 A /230VAC0.32A/277VAC • Output:12V/5A/60W • Efficiency:
86%
Dimensions:
162.5 ×43×32mm Weight:
0,45 kg
