LPF40D12 | Manufacturer: Mean Well | MPN: LPF-40D-12
LED driver LPF 40D 12 12V 40W IP67
LED driver LPF 40D 12 12V 40W IP67 Mean Well LPF series IP67 LED power supplies The LED driver LPF 40D 12 is designed for powering LED lighting and moving sign applications. With universal AC input, active PFC function, and built-in protections against short circuit, over current, over voltage, and over temperature, this power supply ensures reliable performance. The compact size of 162x43x32mm and weight of just 0.45kgs make it easy to install. Suitable for dry/damp/wet locations, this IP67 rated power supply is ideal for upgrading or replacing old power sources in various LED setups. Technical data: - Input voltage: 90~305 VAC /127~431 VDC - Input ac current: 0.6 A/115VAC,0.3A/230VAC,0.25A/277VAC - Output:12V /3
More info
This LED driver LPF 40D 12 12V 40W IP67 is the perfect choice for your Led lighting and moving sign applications. It features universal AC input, active PFC function, 3 in 1 dimming function, cooling by free air convection, fully isolated plastic case with IP67 rating and 5 years warranty. UL8750/CSA C22.2 No. 250-08 approved design ensures safety standards are met while providing reliable performance at a size of only 162x43x32mm weighing just 0.45kgs!
Suitable for Led lighting and moving sign applications (moving Led display). Suitable for dry/damp/wet locations.
Universal AC input / Full range (up to 305 VAC).
Protections: Short circuit/ Over current/ Over voltage/ Over temperature.
Built-in active PFC function.
Built-in 3 in 1 dimming function (1~10 VDC or PWM signal or resistance).
Cooling by free air convection.
Fully isolated plastic case with IP67 rating.
Features- Suitable for Led lighting and moving sign applications (moving Led display)
- Suitable for dry/damp/wet locations
- Universal AC input / Full range (up to 305 VAC)
- Protections: Short circuit/ Over current/ Over voltage/ Over temperature
- Built-in active PFC function
- Built-in 3 in 1 dimming function (1~10 VDC or PWM signal or resistance)
- Cooling by free air convection
- Fully isolated plastic case
- IP67
- Class II power unit, no FG
Suitable for Led lighting and moving sign applications (moving Led display).
Technical data- Safety standards: UL8750, CSA C22.2 No. 250.0-08(except for 48 V, 54 V), ENEC EN61347-1, EN61347-2-13 independent, EN62384, IP67, J61347-1, J61347-2-13 approved ; design refer to UL60950-1, TUV EN60950-
- Input voltage: 90~305 VAC / 127~431 VDC
- Input ac current: 0.6 A /115VAC,0.3A/230VAC,0.25A/277VAC
- Output :12V /3 .34 A /40 W
- Efficiency :84 %

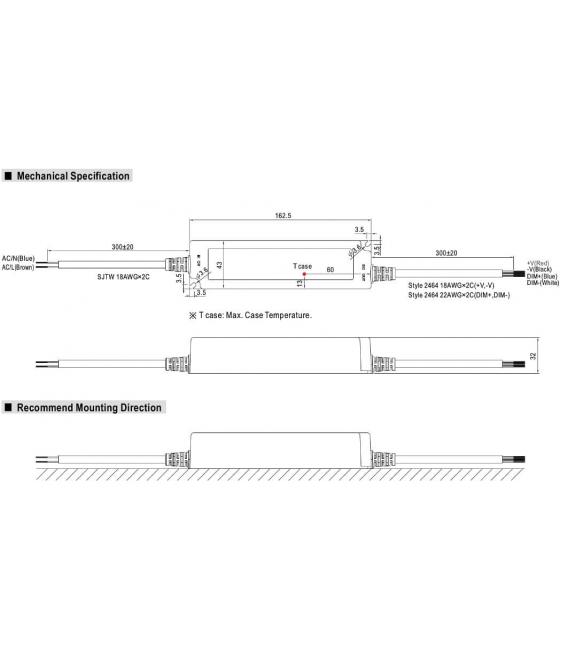

- Dimensions :162x43x32mm
- Weight :0 .45 kgs
