LED driver LPF 40 24 24V 40W IP67 brighten your home with mean well

This LED driver LPF 40 24 24V 40W IP67 is the perfect choice for your lighting needs. With its superior quality and reliable performance, you can trust it to p

This LED driver LPF 40 24 24V 40W IP67 is the perfect choice for your Led lighting and moving sign applications. It features universal AC input, active PFC function, cooling by free air convection, fully isolated plastic case with IP67 rating and 5 years warranty. With UL8750, CSA C22.2 No. 250.0-08 approval and 90~305 VAC / 127~431 VDC input voltage range it offers reliable performance in dry/ damp/ wet locations with 0.6 A / 115 VAC,
0.3A /230 VAC and
0.25 A /277 VAC current draw at
24V output power of
1.67A resulting in a total output power of
40W efficiency of
87%.

Suitable for Led lighting and moving sign applications (moving Led display). Suitable for dry/damp/wet locations.
Universal AC input/full range (up to 305 VAC).
Protections: Short circuit/Over current/Over voltage/Over temperature.
Built-in active PFC function.
Cooling by free air convection.
Fully isolated plastic case.
IP67 rated - suitable for outdoor use.
Class II power unit, no FG (functional ground).
Comes with a comprehensive warranty of five years.

• Input voltage: Universal AC input from
  90~305 VAC /
  127~431 VDC
• Input ac current:
  0.6 A /115VAC,
  0.3A /230VAC,
  and
  0.25 A /277VAC
• Output:
  24V /
  1.67A /
  40W
• Efficiency: 87%

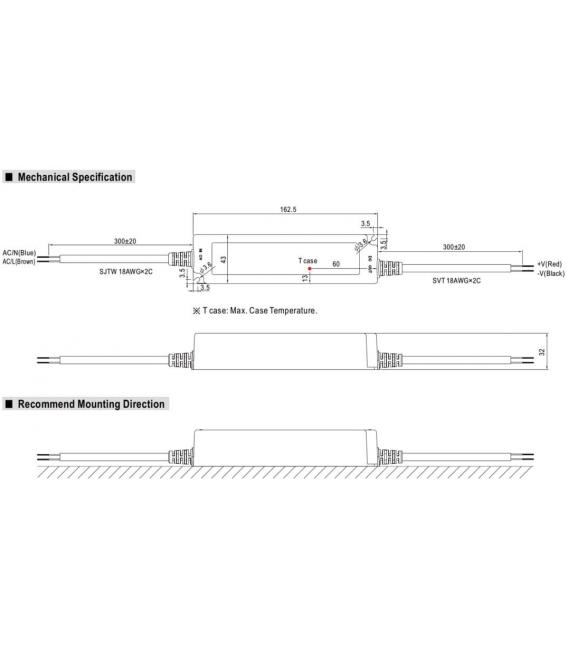

• Dimensions:162.5 × 43 × 32 mm
• Weight: 0.44 kg

This LED driver is specifically designed for Led lighting and moving sign applications, such as moving Led displays.

• Safety standards:
  UL8750,
  CSA C22.2 No.250.0-08 (except for 48V,54V),
  ENEC EN61347-1,
  EN61347-2-13 independent,
  EN62384,
  IP67,
  J61347-1,
  and J61347-2-13 approved.
  Design refers to UL60950-1 and TUV EN60950-1.
• Input voltage range:
  90~305 VAC /
  127~431 VDC
• Input ac current draw:
  0.6 A /115 VAC,
  0.3A /230 VAC,
  and
  0.25 A /277 VAC
• Output power:
  24V /
  1.67A /
  40W
• Efficiency: 87%
• Dimensions:
  162.5 × 43 ×32 mm
• Weight : 0 .44 kg

Please ensure that the input voltage falls within the specified range to avoid any damage to the product or potential safety hazards.

: Please handle this product with care and follow all safety precautions mentioned in the user manual to prevent any accidents or injuries.

Download LPF-40-SPEC.pdf
