LED driver HLG 120H 12 12V IP67 high power waterproof efficient 24V

Discover the power of efficiency with our LED driver HLG 120H. This IP67-rated Mean Well series product delivers reliable performance for your 24V lighting needs.

Introducing the HLG 120H 12V, a high-performance LED driver designed to power your lighting and moving sign applications. This versatile device is equipped with universal AC input and full range capability, making it suitable for various settings.

The HLG 120H LED driver is an efficient solution for powering your LED lights or moving signs. It's built to handle up to a whopping 305 VAC thanks to its universal AC input feature. The device offers multiple protections including short circuit, over current, over voltage, and over temperature safeguards that ensure reliable performance under any condition. With its built-in active PFC function and a unique three in one dimming function (1~10 VDC or PWM signal or resistance), this driver provides added convenience while enhancing energy efficiency.

This robust LED driver comes packed with numerous advantages such as free air convection cooling mechanism which ensures optimal performance even in demanding environments. Its Class II power unit classification coupled with an impressive IP67 rating guarantees durability and safety against dust ingress and water immersion up to one meter depth for about half an hour.

• Suitable for dry/ damp/ wet locations
• Built-in active PFC function
• Built-in three in one dimming function (1~10 VDC or PWM signal or resistance)
• Cooling by free air convection

This product finds extensive use in both indoor and outdoor lighting solutions due to its high efficiency and versatility. It is also ideal for moving sign applications, particularly LED displays.

• Input voltage: 90~305 VAC / 127~431 VDC
• Input ac current: 1.4 A / 115 VAC; 0.6 A / 230 VAC; and,0.55 A /277VAC
• Output:12V/10A/120W
• Efficiency:92%

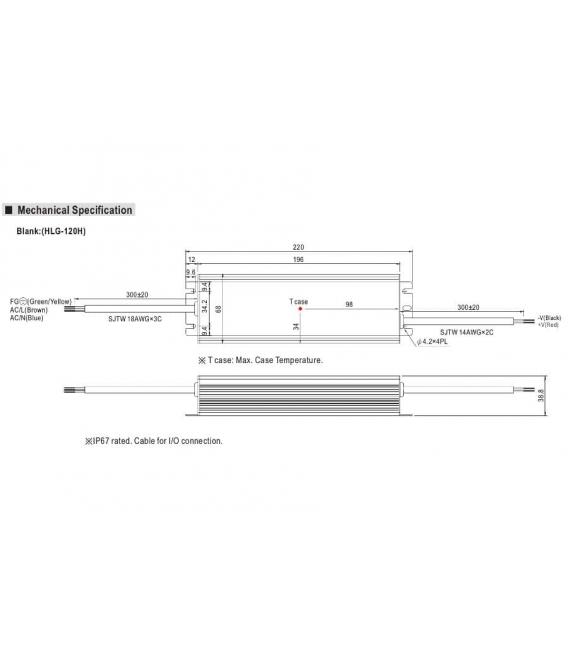

• Dimensions: 220 ×68×38.8mm

To ensure optimal performance and longevity of the product, it's recommended to install in a well-ventilated area away from direct sunlight or heat sources.

Warning: : Always disconnect power before installing or replacing this unit and never exceed the maximum load capacity.

In conclusion, if you're looking for an efficient, reliable, and versatile solution for your lighting needs - be it indoor illumination or dynamic moving signs - look no further than the HLG-120H LED driver! With its impressive features like universal AC input/full range capability up to 305VAC, multiple protections including short circuit/over current/over voltage/over temperature safeguards along with built-in active PFC function & three in one dimming function (1~10VDC or PWM signal or resistance), this device guarantees superior performance while ensuring safety & durability!

Download HLG-120H-SPEC.pdf
