HLG80H12 | Manufacturer: Mean Well | MPN: HLG-80H-12
LED driver HLG 80H 12 12V 60W IP67 power waterproof 24V mean well
More info
Welcome to a world of efficient and reliable lighting solutions. The LED driver HLG 80H is designed to meet all your LED lighting needs, from moving signs to general illumination. With its universal AC input and full range capabilities, this product offers exceptional protection against short circuit, over current, over voltage, and over temperature.
The LED driver HLG 80H is an innovative solution for various lighting applications including moving sign displays. It comes with built-in active PFC function ensuring optimal performance while the unique three in one dimming function allows customizable brightness control. This product also boasts cooling by free air convection guaranteeing efficient operation even under demanding conditions.
This high-quality product offers numerous advantages such as suitability for dry/damp/wet locations making it versatile for different environments. Its universal AC input/full range up to 305 VAC ensures compatibility with various power sources while its robust protections safeguard against electrical faults.
Features- Suitable for Led lighting and moving sign applications
- Universal AC input / Full range (up to 305 VAC)
- Protections: Short circuit/ Over current/ Over voltage/ Over temperature
- Built-in active PFC function
- Built-in three in one dimming function (1~10 VDC or PWM signal or resistance)
- Cooling by free air convection
- IP67 rating
- Class II power unit
This versatile device can be used in a variety of settings including commercial spaces like shopping malls, offices or residential areas where effective illumination is required. It's particularly useful for LED lighting and moving sign applications.
Technical data- Input voltage: 90~305 VAC / 127~431 VDC
- Input ac current: 0.85 A / 115 VAC, 0.425 A / 230 VAC, 0.4 A / 277 VAC
- Output: 12V/5A/60W
- Efficiency: Up to an impressive rate of up to88%

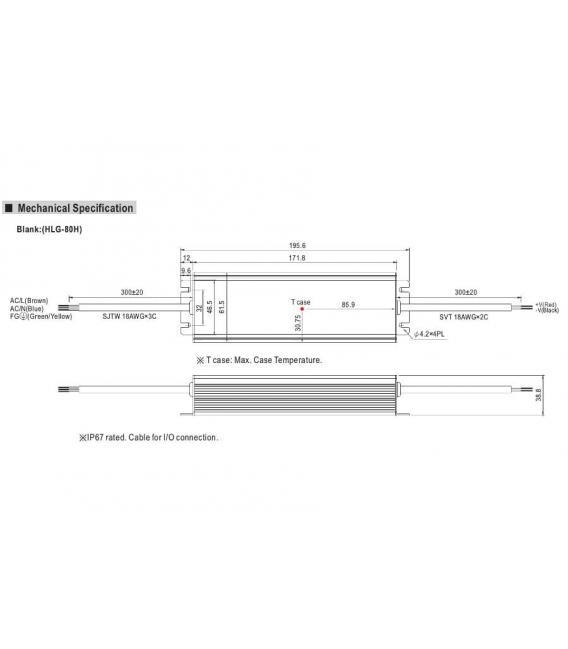

- Dimensions:Compact size of just195.6 ×61.5 ×38.8 mm
- Weight: Lightweight at only0,84 kg
To ensure the longevity and optimal performance of this product, it is recommended that you follow all manufacturer's instructions for installation and use.
In conclusion, the LED driver HLG80H offers a reliable solution for your lighting needs with its advanced features and robust protections against electrical faults. Its versatility makes it suitable for various environments while its high efficiency ensures optimal energy usage making it a smart choice for any project.
