QTP5 1x49W 220V Quicktronic professional

Nominal voltage 220…240V
Mains frequency 50…60Hz
DC voltage 176…276V
Operating frequency 40…50 kHz
Max. no. of ECGs on circuit breaker 10A 17
Max. no. of ECGs on circuit breaker 16A 28

Starting time 1s

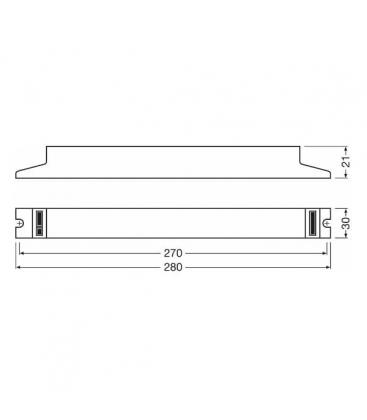

Length 280 mm
Width 30 mm
Height 21 mm
Mounting hole spacing, length 270 mm

Ambient temperature range -20…+50 °C

Dimmable No
Suitable for fixtures with prot. class I / II
End of lamp life safety shutdown EOL T.2

Approval marks – approval VDE / VDE-EMC / CE / ENEC 10
EEI – Energy Label A2 BAT
Standards acc. to EN 61347-2-3 / acc. to EN 60929 / acc. to EN 55015: 2006 + A1: 2007 / acc. to EN 61000-3-2 / acc. to EN 61547

Product benefits
-Long lamp life
-No adverse effect from frequent on/off switching
-Perfect lamp start for applications with motion sensors
-Automatic restart after lamp replacement
-VDE/VDE EMC certified system
-Very high energy efficiency due to cut-off technology

Areas of application
-Emergency lighting systems acc. to EN 50172 / DIN VDE 0108-100
-Industry
-Open-plan offices, corridors and storage rooms
-Public buildings
-Sports halls and factories
-Strip lighting
-Suitable for emergency lighting (DC operation)
-Modernization of existing systems
