VS Capacitor 20mF 50/60Hz 250V 41001

003424 | Manufacturer: Vossloh Schwabe | EAN: 4050732003424 | MPN: 500316

Parallel capacitor with a plastic casing for fluorescent lamps (T,TC) and discharge lamps (HS, HI, HM) 250V, 50/60Hz. Type A.

3,86 €tax excl.

Price for 1 piece, excluding shipping costs!
Condition: New product
Factory Box - pieces (pcs): 10


More info

Type A Capacitors with a Plastic Casing – 250V.
For T/TC Fluorescent Lamps and HS/HI/HM/LS Discharge Lamps.
Type: 41001
Capacity: 20 mF

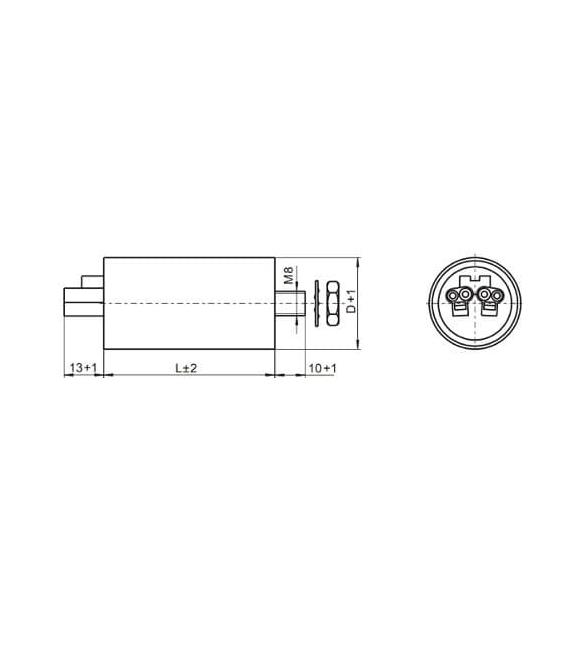

Dimension / Lenght mm: 35/94
Mounting: M8 x 10 bolt
Filled / Dry: Dry
Terminal: Push-in terminal
Thermal fuse: -
Approval mark: I

Technical Details of Vossloh-Schwabe Parallel Capacitors
All VS capacitors comply with IEC 61048 A2 (Safety) and IEC 61049 (Operation). Capacitors rated 250V and 280V also bear the ENEC mark.

Nominal voltage
-250V, 50/60Hz;
-280V, 50/60Hz;
-450V, 50/60Hz(dependent on type)

Capacitance tolerance: ±10% ; ±5%

Temperature range: –40 to +85 °C

Relative humidity load:
-Class F for Type B capacitors
-75% annual mean
-95% peak value on 30 days
-Class G for Type A capacitors
-65% annual mean
-85% peak value on 30 days

Capacitors must not be subjected to condensation

Failure rates it maximum voltage, current and temperature values are complied with = 1 ‰ per 1000 operating hours

Permissible torque on the base screw:
-M8x10 – 5.0 Nm (aluminium casing)
-M8x10 – 2.2 Nm (plastic casing)

Split fixing pins with a clearance of 20 mm for plastic casings (side clip)

Optional thermal fuse (Type A capacitors)

Connecting wires:
Parallel capacitors for fluorescent lamps
-Casing diameter 25–30 mm: 0.5-–1mm² and IDC terminals for H05V-U 0.5 conductors
-Casing diameter >30 mm: 0.5–1mm² parallel capacitors for high-pressure lamps

Casing diameter 25–30 mm: 0,5–1mm² and IDC terminals for H05V-U 0.5 conductors

Casing diameter >30 mm: 0.5–1.5mm²

Data sheet

Data sheet: Capacitors VS Capacitor 20mF 50/60Hz 250V 41001

Factory Box - pieces (pcs)10

Download: Capacitors, VS Capacitor 20mF 50/60Hz 250V 41001
