509502 | Manufacturer: Vossloh Schwabe | EAN: 8712251098454 | MPN: 509502
ballasts LN26 813 220V 50Hz TC magnetic
Product is out of production!

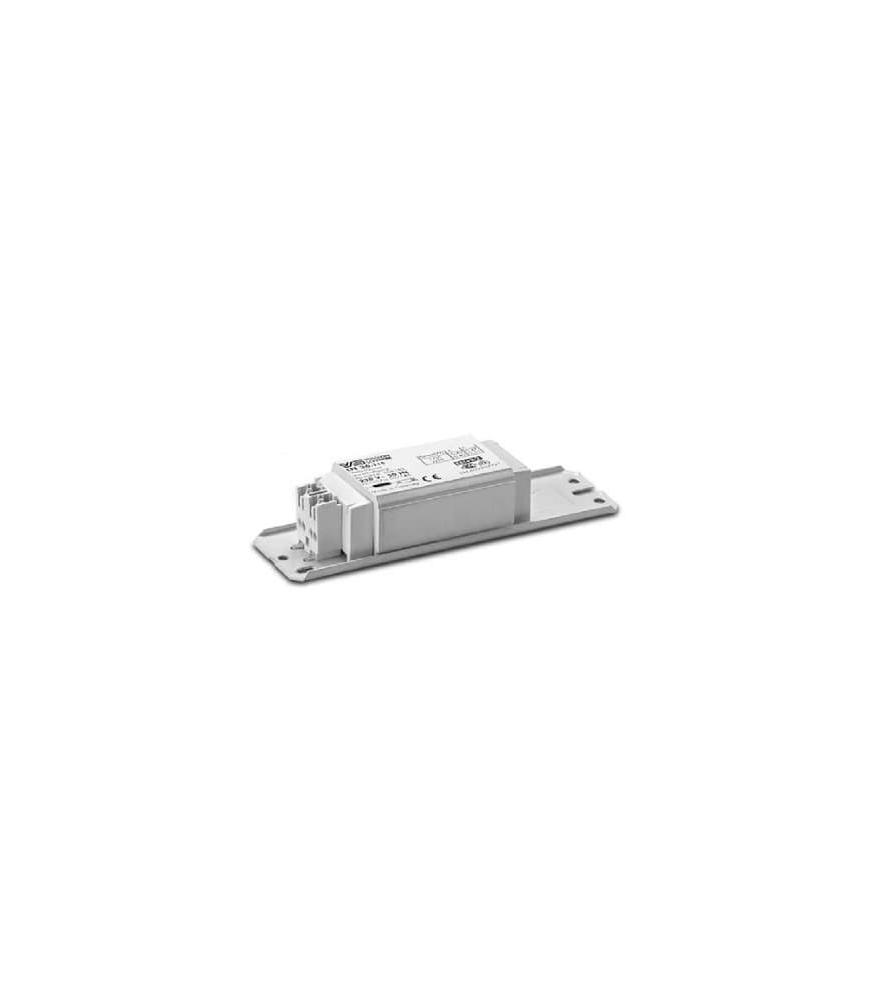

The Ballast LN26.813 220V 50Hz TC-D TC-T is a standard ballast that is vacuum-impregnated with polyester resin for durability. It features push-in terminals for easy lead connection and IDC terminals for automatic luminaire wiring. With a protection class I, this ballast is compatible with TC-D/TC-T lamps and has an output of 26W. Its compact shape (28 × 41 mm) and dimensions (110 × 100 × 45 mm) make it suitable for various applications. Energy-efficient with a B2 rating, this ballast ensures reliable performance.
More info
Vossloh Schwabe ballasts LN26 813 220V 50Hz TC magnetic Ballast. Enhance your lighting with Ballast LN26.813 220V 50Hz TC-D TC-T. Experience superior performance and efficiency this magnetic ballast.
Standard ballast
Vacuum-impregnated with polyester resin
Push-in terminal for leads: 0.5 - 1 mm²
For the automatic luminaire wiring: IDC terminals for leads H05 V-U 0.5
Protection class I
Lamp type: TC-D/TC-T
Output [W]: 26 for compact fluorescent lamps TC-D/TC-T (G24d-3/GX24d-3)
Voltage [V]: 230
Frequency [Hz]: 50
Shape: 28 × 41 mm

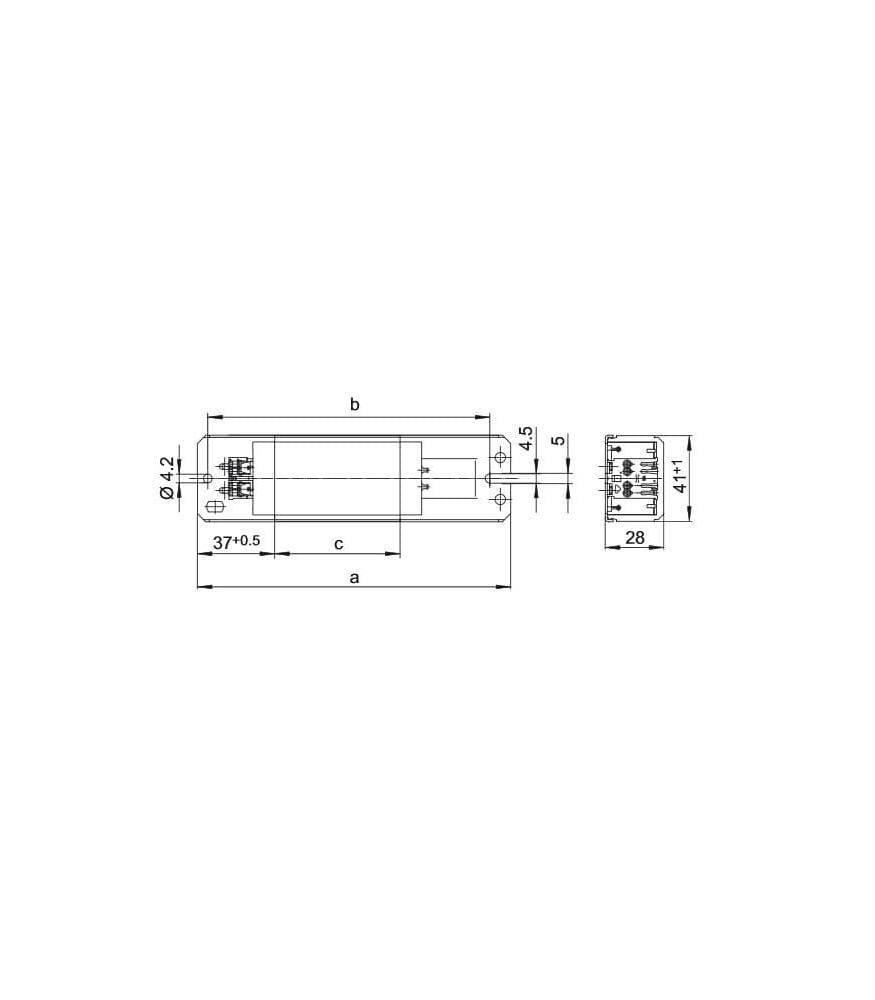

Dimensions (a × b × c): 110 × 100 × 45 mm
Energy efficiency: B2
| Explanation Dimmable | no |
| Explanation Voltage - (V) | 220 |
| Explanation Factory packed - (pieces) | 10 |
