HID PV 100 220V SDW tg electronic ballasts

Enhance your lighting with HID PV 100 S electronic ballast for SDW tG lamps. Achieve optimal brightness effortlessly at 220V.

Automatic restart Yes
Ignition switch-off time 6 min
Ignition Voltage 3.3 (min), 4 (max)kV
Operating frequency 0.14 kHz
Mains voltage safety (AC) -18% /+10%
Mains voltage performance (AC) -10% /+6%
Min. Mains voltage operational 180 (min) V
Inrush current Peak 33 (max) A
Inrush current Width 0.50m s
Power losses gear 9 W
Constant wattage deviation -3% /+3%
PowerFactor 100% output power 0.95 -
Overvoltage protection 320 V 48 hr
Max ballast on MCB(16 A type B) 14 ×
Hum and Noise level Inaudible
Connector type Insert
Max. cable length Device/Lamp 2 m
Striplength 10 - 11 mm
Wcs Ballast contacts 0.50-2.50 mm²
Active temperature protection Yes
T-case life 75 C
T-case maximum 85 (max) °C
T-ambient –20 (min), 60 (max) °C
T-storage -25 (min), 80 (max) °C

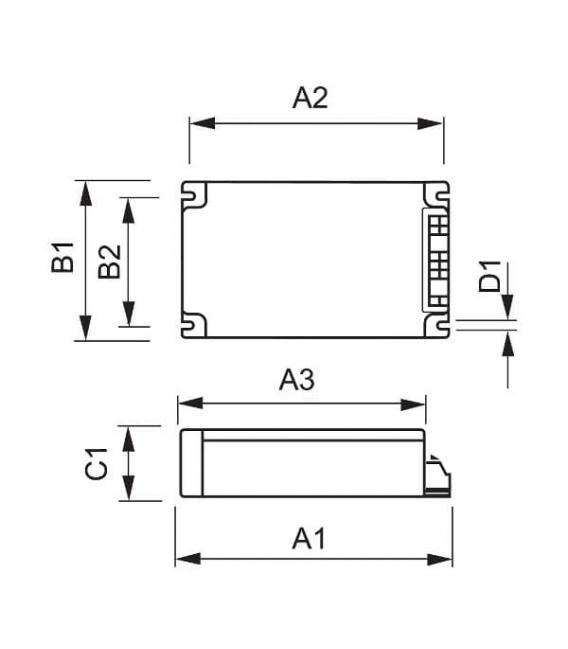

Length A1 150 mm
Fixing Hole Distance Length A2 133.6 mm
Width B1 90 mm
Fixing Hole Distance Width B2 70 mm
Height C1 37 mm
Fixing Hole Diameter D1 4.5 mm
PrimaVision SDW-TG (50 W and 100W) for SDW-TG - High quality and robust performance
• Optimal lamp performance thanks to minimal lamp power tolerance
• Reduces color differences between lamps and initial lumen spread
• Performance is independent of mains voltage

Features
• Available as Standard (/S) version for use in a luminaire, or with separate strain relief for independent use on a (false) ceiling
• Minimal lamp power spread
• Lamp end-of-life detection
• High Tambient and Tcase temperatures
• Long lifetime of 40000 hours

Applications
• Shop lighting, for a cozy atmosphere (e.g. in furniture shops) and excellent display of fresh goods (e.g. in butcher's shops, bakeries, florists)
• Suitable for indoor use only
